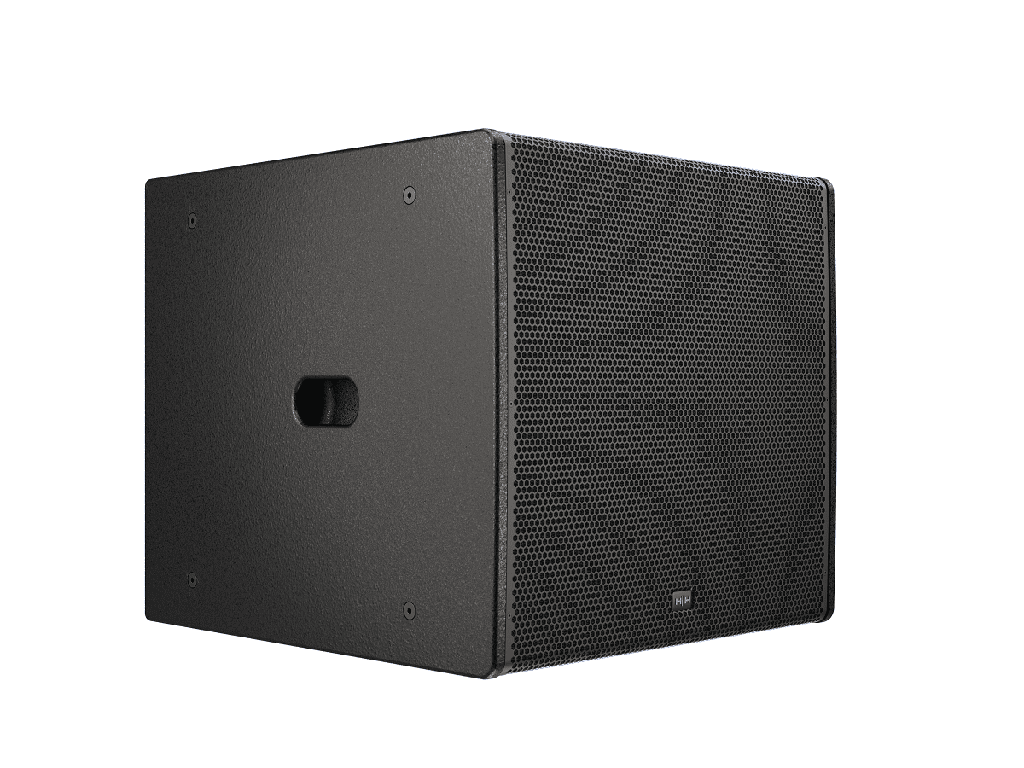

The TNA-1800SA Active subwoofer features a HH designed 18-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800SA can be installed quickly and easily. The TNA-1800SA offers a max SPL of 138 dB and offers a frequency response as low as 32Hz. The TNA-1800SA offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.
SPECIFICATIONS
- System Type: 18-inch Active Subwoofer, Direct Radiating, Bass Reflex
- Frequency Response (-10): 32Hz - 100Hz
- Frequency Response (-3): 37Hz - 100Hz
- LF Driver: 1 x 18-inch High sensitivity HH designed driver. 4-inch Voice Coil
- Max SPL: 138 dB
- Crossover Frequency: Active - 70Hz to full range
- Power: 4000W Peak, 2000W Continuous, 1000W RMS
- Input Sensitivity: 0dBu to +10dBu Adjustable
- Input Connector: Balanced Female XLR
- Output Connector: Balanced Male XLR (Switchable Full Range/Xover)

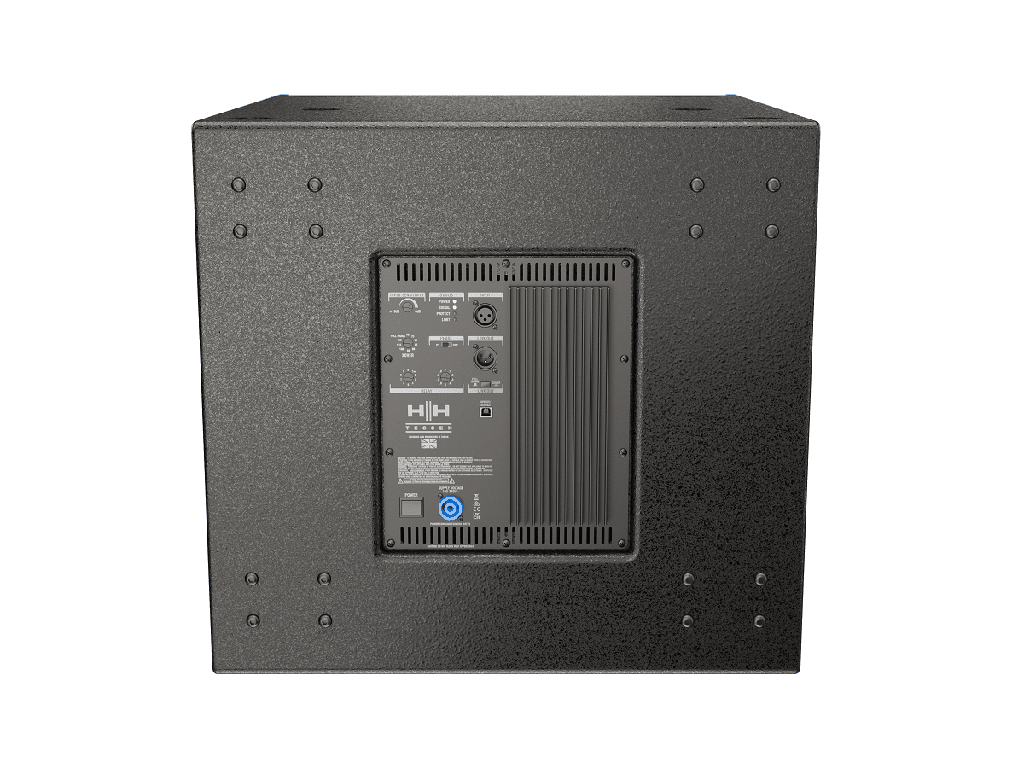

- Controls: Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
- Cabinet: Acoustically optimised 18mm plywood cabinet with extensive internal bracing
- Finish: Painted Black (White finish optional, subject to MOQ)
- Mounting Points: 8x M10 Penn Elcom tie down/flying points for optional TNA-BRK3 frame.16x M8 inserts for optional transport wheels
- Grille: 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
- Unit Dimensions (H/W/D): 562 x 600 x 640mm, 22.1" x 23.6" x 25.2"
- Unit Weight: 43.5Kg, 95.9 lbs
- Carton Dimensions (H/W/D): 740 x 730 x 765mm, 29.1" x 28.7" x 30.1" , 0.413 M3
