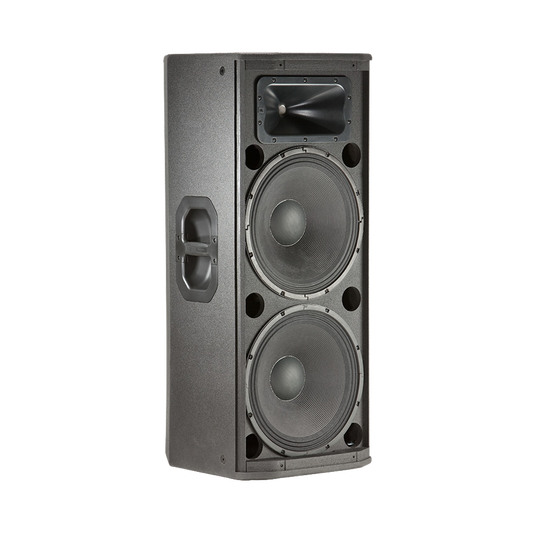

The PRX425 Two-Way Dual 15" Passive Speaker by JBL is a powerful option for touring or installed FOH mains. The PRX425 houses dual 15"(38.1 cm) woofers and a 1"(2.5 cm) polymer diaphragm compression driver for 600 W of continuous power capacity. The compression driver is mounted to a 90 x 50° horn, providing even coverage. The 90° coverage angle is wide enough to provide coverage of an audience when used one-per-side, yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
The PRX425 features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance. The PRX425 has twelve M10 suspension points, allowing it to be elevated above the audience.
FEATURES
- Handles 600 W Continuous / 1,200 W Programme
- 2,400 W Peak Handling
- 4Ω Nominal Impedance
- 90 x 50° Sound Coverage
- Passive Crossover Network
SPECIFICATIONS
- Passive
- Frequency Range: 48 Hz to 19 kHz (-10 db)
- Frequency Response: 61 Hz to 16 kHz ±3 dB
- Coverage Pattern: 90 x 50 °
- Crossover Type: Passive
- Crossover Frequency: 2.2 kHz
- Power Handling: 600 W continuous, 1,200 W programme, 2,400 W peak
- Maximum SPL: 128 dB SPL continuous, 134 dB SPL peak
- Sensitivity: 100 dB SPL (1W @ 1 m)
- Low Frequency Driver: Dual 15" (380 mm) JBL MB115-8A woofers
- High Frequency Driver: 1" (25 mm) JBL 2414H-C polymer diaphragm compression driver
- Nominal Impedance: 4Ω
- Enclosure: Trapezoidal 0.71" (18 mm) birch/poplar plywood
- Mounting Options: Twelve M10 Suspension Points
- Handle or Carrying Type: Two glass-filled handle with rubber grip
- Finish: Black DuraFlex finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing

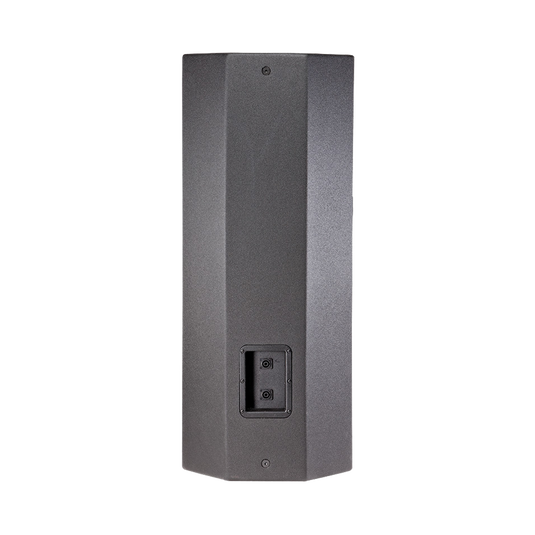

- Input Connectors: 2 x Neutrik Speakon NL-2 and 1/4" combo jacks in parallel
- Dimensions: (H x W x D) 41.1 x 16.9 x 20.5" (1,044 x 429 x 521 mm)
- Weight: 33.5 kg
