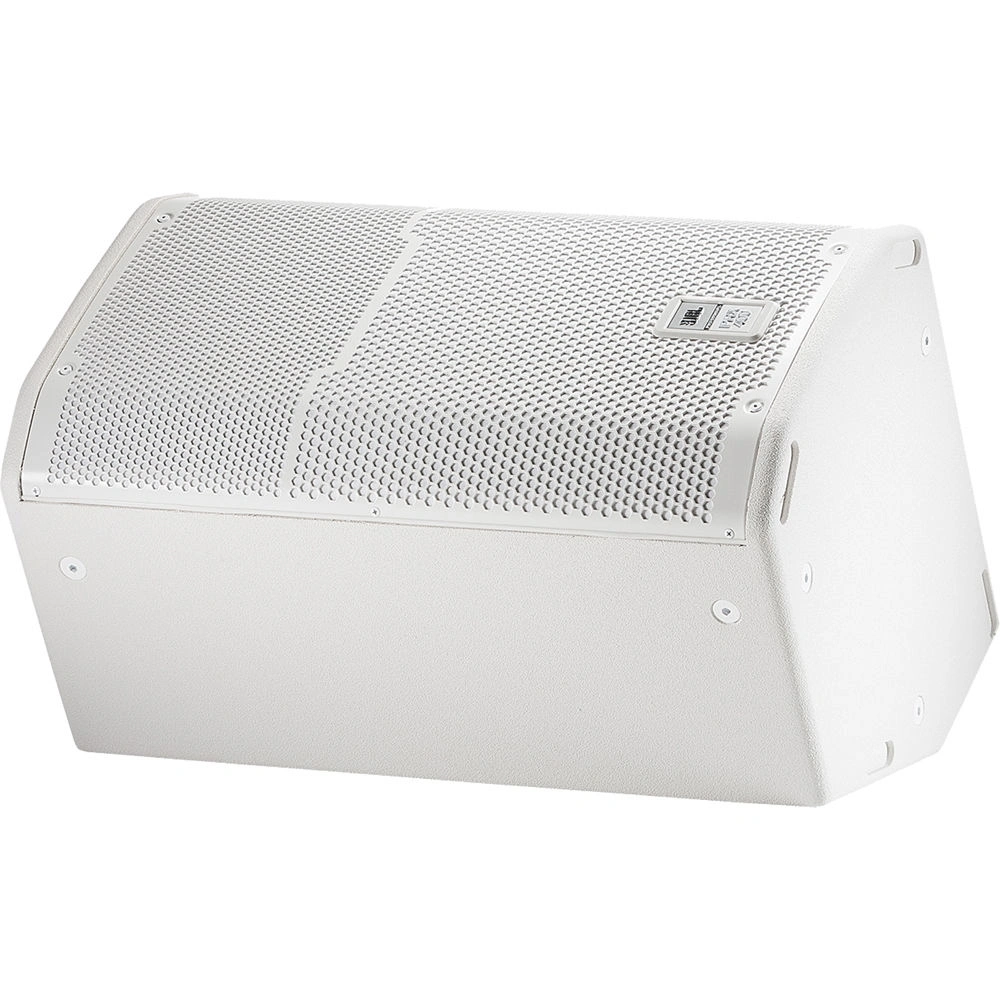

The white JBL PRX412M Two-Way 12" Passive Speaker (White) has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX412M houses a 12" woofer and a 1" polymer diaphragm compression driver for 300W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.
The PRX412M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. Designed for use with fixed installations, the loudspeaker utilises twelve M10 suspension points for safe deployment in light duty applications.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
FEATURES
- Handles 300W Continuous / 600W Programme.
- 1,200W Peak Handling.
- 8 ohms Nominal Impedance.
- 90 x 50° Sound Coverage.
- Passive Crossover Network.
SPECIFICATIONS
- Passive
- Frequency Range: 50 Hz - 20 kHz (-10 db)
- Frequency Response: 62 Hz - 19 kHz ±3 dB
- Coverage Pattern: 90 x 50°
- Crossover Type: Passive
- Crossover Frequency: 2.0 kHz
- Power Handling: 300 W continuous, 600 W programme, 1200 W peak
- Maximum SPL: 120 dB SPL continuous, 126 dB SPL peak
- Sensitivity: 95 dB SPL (1 W @ 1 m)
- Low Frequency Driver: 12" (305 mm) JBL MB112-8 woofer
- High Frequency Driver: 1" (25 mm) JBL 2414H-C polymer diaphragm compression driver
- Nominal Impedance: 8 ohms
- Enclosure: Asymmetrical stage monitor, 0.71" (18 mm) birch/poplar plywood
- Mounting Options: Twelve M10 Suspension Points
- Handle or Carrying Type: Glass-filled handle with rubber grip
- Finish: Black DuraFlex finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing

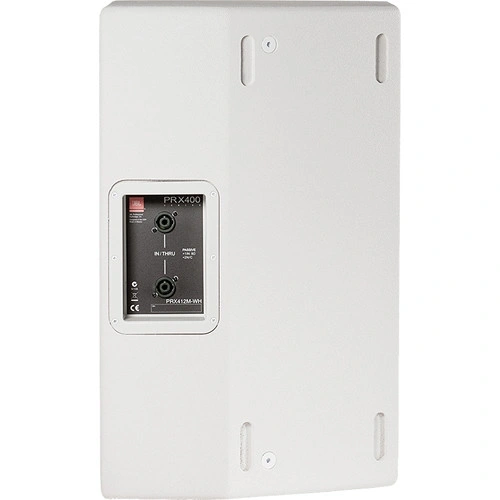

- Input Connectors: Parallel Neutrik Speakon NL-2 and 1/4" combo jacks
- Dimensions (H x W x D): 22.6 x 13.9 x 15.7" (57.4 x 35.3 x 39.9 cm)
- Weight: 35 lb (16 kg)
