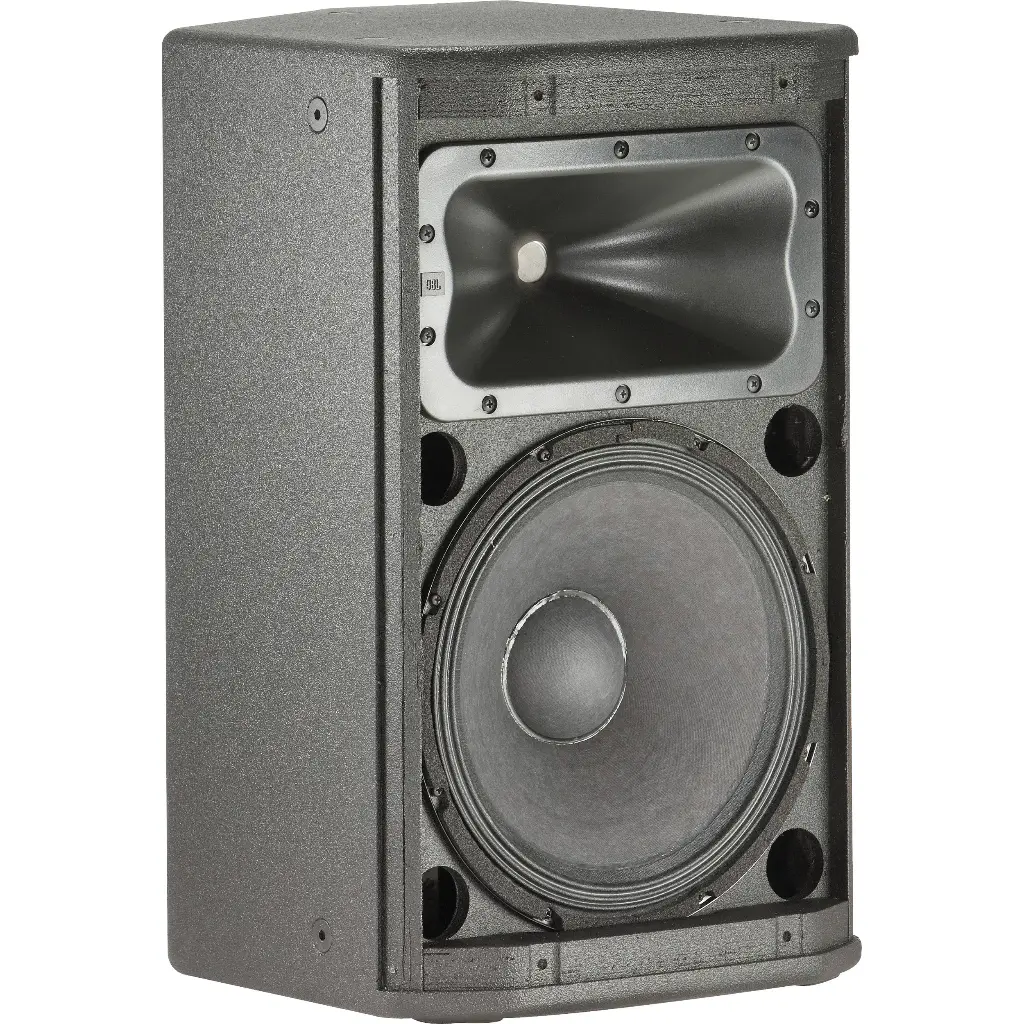

The black PRX412M Two-Way 12" Passive Speaker by JBL has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX412M houses a 12"(30.5 cm) woofer and a 1"(2.5 cm) polymer diaphragm compression driver for 300 W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.
The PRX412M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. For use on a tripod or over a subwoofer, JBL's dual angle pole mount socket is integrated into the cabinet design. The socket can tilt down by 10°, allowing a mounted speaker to still obtain optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance.
FEATURES
- Handles 300 W Continuous / 600 W Programme
- 1,200 W Peak Handling
- 8 ohms Nominal Impedance
- 90 x 50° Sound Coverage
- Passive Crossover Network
SPECIFICATIONS
- Passive
- Frequency Range: 50 Hz - 20 kHz (-10 db)
- Frequency Response: 62 Hz - 19 kHz ±3 dB
- Coverage Pattern: 90 x 50°
- Crossover Type: Passive
- Crossover Frequency: 2.0 kHz
- Power Handling: 300 W continuous, 600 W programme, 1200 W peak
- Maximum SPL: 120 dB SPL continuous, 126 dB SPL peak
- Sensitivity: 95 dB SPL (1 W @ 1 m)
- Low Frequency Driver: 12" (305 mm) JBL MB112-8 woofer
- High Frequency Driver: 1" (25 mm) JBL 2414H-C polymer diaphragm compression driver
- Nominal Impedance: 8 ohms
- Enclosure: Asymmetrical stage monitor, 0.71" (18 mm) birch/poplar plywood
- Mounting Options: Dual angle, 0° or -10° 35 mm pole socket, Twelve M10 Suspension Points
- Handle or Carrying Type: Glass-filled handle with rubber grip
- Finish: Black DuraFlex finish
- Grille: Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing
- Input Connectors: Parallel Neutrik Speakon NL-2 and 1/4" combo jacks
- Dimensions: (H x W x D) 22.6 x 13.9 x 15.7" (57.4 x 35.3 x 39.9 cm)
- Weight: 16 kg
