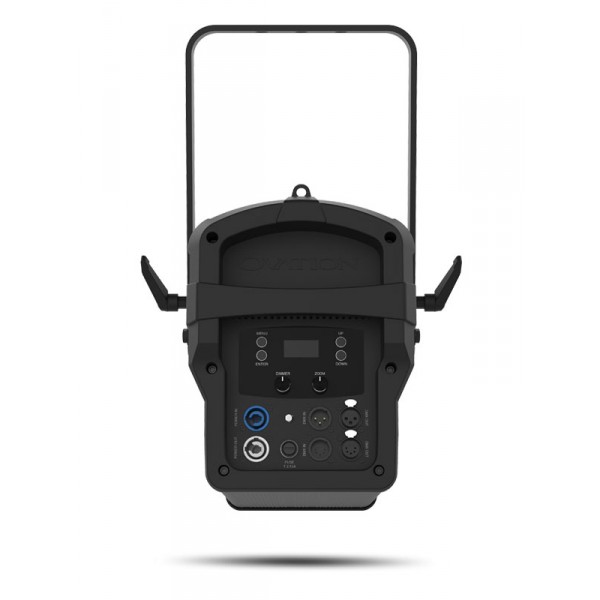

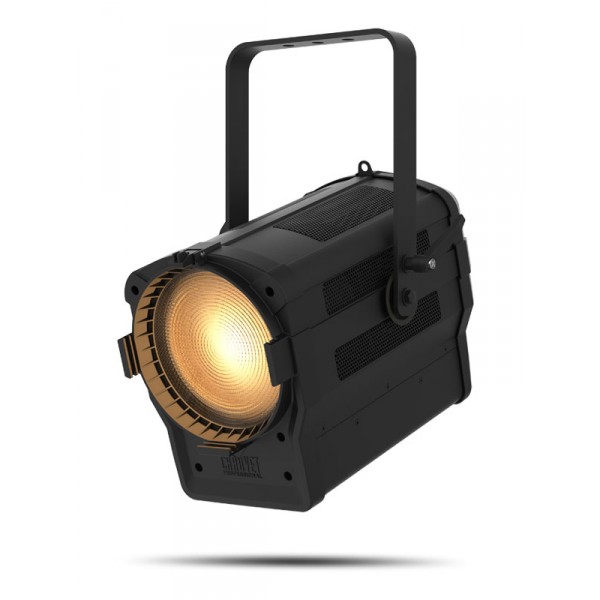

CHAUVET Ovation F-265WW

https://store.cue-go.co.nz/web/image/product.template/81/image_1920?unique=a77dab0

OVATIONF265WW

$ 2,231.55 2231.55 NZD $ 2,349.00 Including GST

$ 2,349.00 Including GST

POA

This combination does not exist.

Contact Us
Chauvet



Availability: In stock with supplier
Note: Stock levels around the Black Friday and Christmas periods change quickly, please contact us for an exact ETA if this order is urgent.

Ovation F-265WW is a high-power Fresnel-style fixture utilizing our efficient warm white LED system to project a bright, beautifully soft, high CRI (95+) field of light ideal for theaters and television studios. A motorized zoom with a 27°- 68° field angle and the light output can be controlled via DMX, on-board dials, RDM, adjustable PWM and an easy to navigate OLED full text display.


FEATURES
  • Warm white fresnel with output comparable to an 8”, 2,000 W Fresnel
  • 16-bit dimming resolution for smooth fades
  • Flat, even field of light
  • Virtually silent operation for use in any situation
  • Motorized zoom angle between 27° to 68°, manually or via DMX



SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (WW) 230 W, (3.6 A), 50,000 hours life expectancy
  • Color Temperature (at full): 3142 K
  • CRI: 96
  • Beam Angle: 16° to 46°
  • Field Angle: 27° to 68°
  • Zoom Angle: 27° to 68°
  • Lumens (27°): 9,283
  • Lumens (59°): 12,802
  • Illuminance (27°): 4,010 lux @ 5 m
  • Illuminance (59°): 1,162 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 30 Hz
  • Dim Modes: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 15.11 x 12.59 x 17.71 in (384 x 320 x 450 mm)
  • Weight: 17.2 lb (7.9 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Protocol(s): DMX, RDM
  • DMX Channels: 1, 2, 2 or 5
  • Modes/Personalities: 4 personalities (1, 2, 2, 5)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
  • Power and Current: 227 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 234 W, 1.11 A @ 208 V, 60 Hz
  • Power and Current: 235 W, 1.01 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


WHAT'S INCLUDED
  • Ovation F-265WW
  • Neutrik powerCON power cord
  • Gel Frame

OPTIONAL ACCESSORIES
