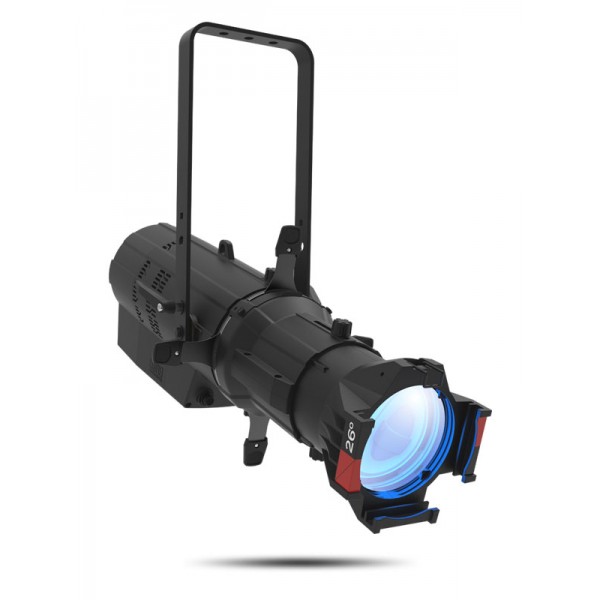

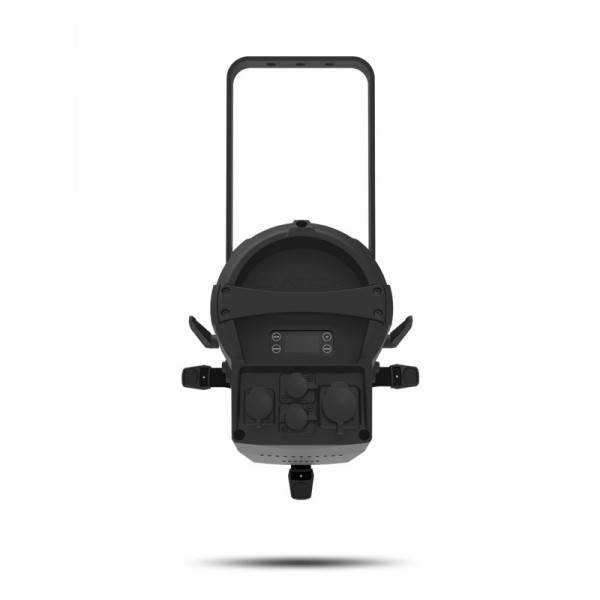

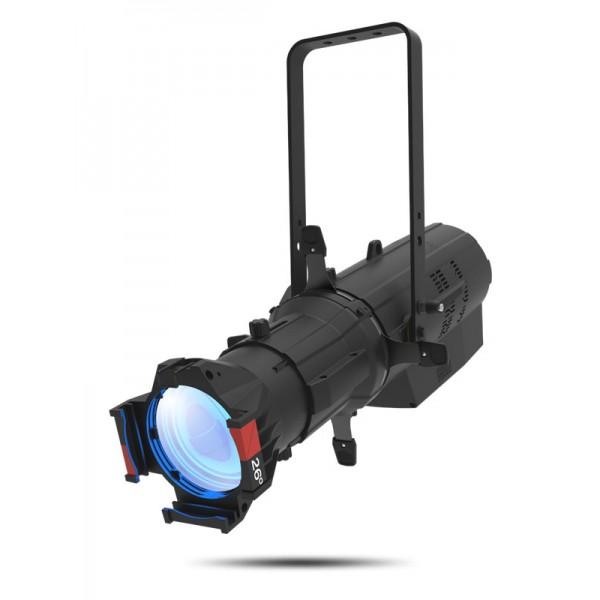

CHAUVET Ovation E-910FCIP (no lens)

Ovation E-910FC IP takes the high-performance, full RGBA-Lime color-mixing marvel of the Ovation E-910FC outdoors. Our standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS style fixture that offers Color Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection. Control options include full bit dimming (per color and master), selectable PWM, RDM and onboard dimming curves selection. Also accessible is our virtual color wheel which matches popular color gels.

FEATURES

• Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
• Fully IP65 rated for seasonal use indoors or out
• Ultra smooth 16-bit dimming of master dimmer and individual colors
• Flat, even field of light with superior color mixing
• Virtual Color wheel with color matched to popular Rosco Gel colors
• Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

• Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
• Color Temperature (at full): 5850K
• Beam Angle (w/19° lens): 19°
• Beam Angle (w/26° lens): 24°
• Beam Angle (w/36° lens): 28°
• Beam Angle (w/50° lens): 41°
• Beam Angle (w/15°–30° lens)(Narrow): 13°
• Beam Angle (w/15°–30° lens)(Wide): 24°
• Beam Angle (w/25°–50° lens)(Narrow): 23°
• Beam Angle (w/25°–50° lens)(Wide): 36°
• Field Angle (w/19° lens):19°
• Field Angle (w/26° lens): 26°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 51°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 50°
• Dimming Modes: 9
• Lumens (w/19° lens): 3,236
• Lumens (w/26° lens): 4,316
• Lumens (w/36° lens): 3,918
• Lumens (w/50° lens): 3,813
• Illuminance (w/19° lens): 3,017 lux @ 5 m
• Illuminance (w/26° lens): 1,894 lux @ 5 m
• Illuminance (w/36° lens): 1,137 lux @ 5 m
• Illuminance (w/50° lens): 513 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): 3,784 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): 1,223 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): 1,657 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): 647 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Manual
• Strobe Rate: 0 to 28 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7.1 kg)
• Weight (w/26° lens): 19.8 lb (9 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.3 kg)
• Weight (w/25°–50° lens): 27 lb (12.2 kg)
• Exterior Color: Black
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX
• DMX Channels: 5, 7, 10, 12, 13 or 15
• Modes/Personalities: 4 personalities (5, 7, 10, 12, 13, 15)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
• Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
• Power and Current: 234 W, 1.160 A @ 208 V, 60 Hz
• Power and Current: 234 W, 1.074 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, METIP
• Rating: IP20, dry location

WHAT'S INCLUDED

• OVATION E-910FC
• Neutrik powerCON power cord

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
• Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550

REQUIRED ACCESSORIES

• Lens Tube: 19°, 26°, 36°, 50°
