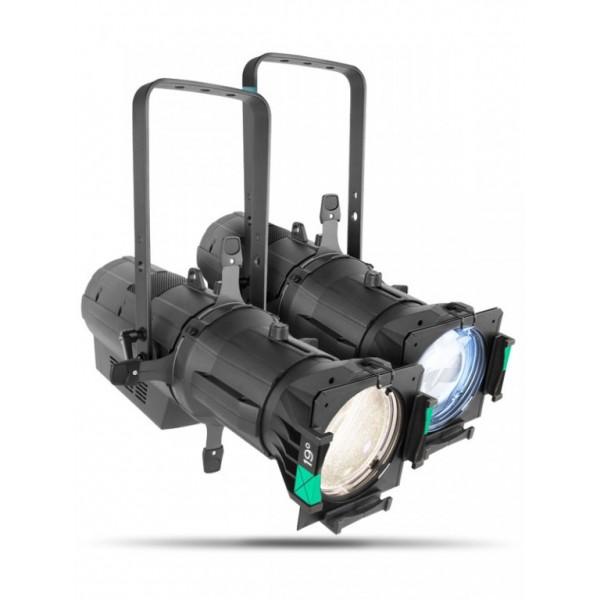

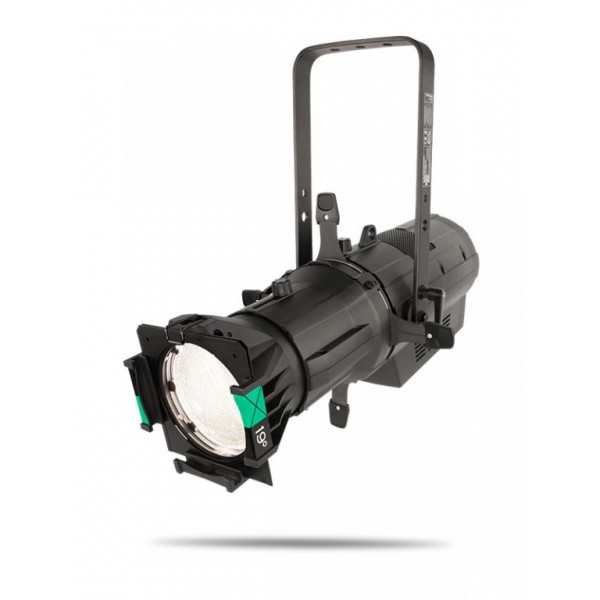

CHAUVET Ovation E-260CW (no lens)

Ovation E-260CW is powered by a single source LED that exceeds the output of a 750 W tungsten light source. This cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

FEATURES

• Cool white ERS style fixture with output exceeding a tungsten 750w source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (Remote Device Management) for added flexibility
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
• Color Temperature (at full): (WW) 3149 K; (CW) 5452 KCRI: (WW) 91; (CW) 90
• Beam Angle (w/14° lens): 11°
• Beam Angle (w/19° lens): 13°
• Beam Angle (w/26° lens): 16°
• Beam Angle (w/36° lens): 20°
• Beam Angle (w/50° lens): 28°
• Beam Angle (w/15°–30° lens)(Narrow): 12°
• Beam Angle (w/15°–30° lens)(Wide): 14°
• Beam Angle (w/25°–50° lens)(Narrow): 21°
• Beam Angle (w/25°–50° lens)(Wide): 22°Field Angle (w/14° lens): 14°
• Field Angle (w/19° lens): 18°
• Field Angle (w/26° lens): 25°
• Field Angle (w/36° lens): 34°
• Field Angle (w/50° lens): 50°
• Field Angle (w/15°–30° lens)(Narrow): 15°
• Field Angle (w/15°–30° lens)(Wide): 29°
• Field Angle (w/25°–50° lens)(Narrow): 26°
• Field Angle (w/25°–50° lens)(Wide): 46°Dimming Modes: 4
• Lumens (w/19° lens): 7,587
• Lumens (w/26° lens): 10,284
• Lumens (w/36° lens): 10,121
• Lumens (w/50° lens): 9,655
• Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787lux @ 5 m
• Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m; (CW)10,674 lux @ 5 m
• Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
• Illuminance (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
• Illuminance (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
• Illuminance (w/15°–30° lens)(Narrow): (WW) 12,430 lux @ 5 m ; (CW) 17,494 lux @ 5 m
• Illuminance (w/15°–30° lens)(Wide): (WW) 5,339 lux @ 5 m; (CW) 6019 lux @ 5 m
• Illuminance (w/25°–50° lens)(Narrow): (WW) 4,997 lux @ 5 m; (CW) 6144 lux @ 5 m
• Illuminance (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3169 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual
• Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Color Temperature Presets: (CW) No

CONSTRUCTION / PHYSICAL

• Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
• Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
• Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
• Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
• Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lb (7 kg)
• Weight (w/14° lens): 20.8 lb (9.43 kg)
• Weight (w/26° lens): 19.4 lb (8.80 kg)
• Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
• Weight (w/25°–50° lens): 27 lb (12.25 kg)
• Exterior Color: Black
• Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
• Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

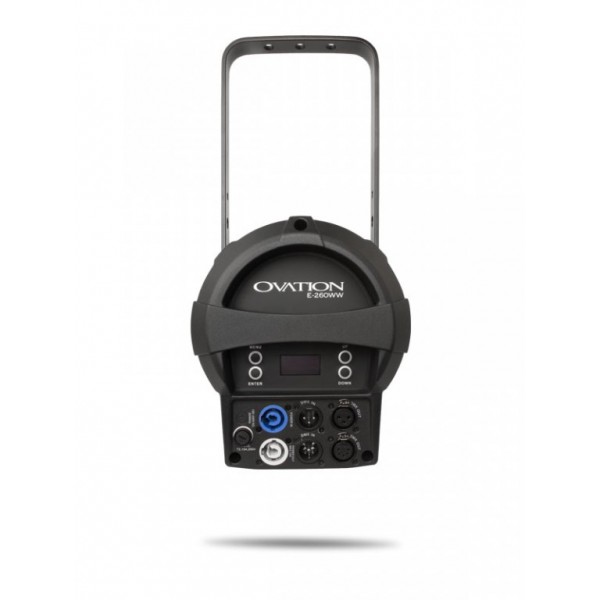

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik power
• CONPower Input: Neutrik power
• CONPower Output: Neutrik power
• CONData Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: (WW) DMX; (CW) DMX, RDM
• DMX Channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: (WW) 209 W, 1.655 A @ 120 V, 60 Hz; (CW) 225 W, 1.86 A @ 120 V, 60 Hz
• Power and Current: (WW) 206 W, 1.026 A @ 208 V, 60 Hz; (CW) 234 W, 1.12 A @ 208 V, 60 Hz
• Power and Current: (WW) 204 W, 0.925 A @ 230 V, 50 Hz; (CW) 233 W, 1.02 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Ovation E-260WW/Ovation E-260CW
• Neutrik powerCON power cord

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• 3-pin or 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20DRDM2go
• Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
• Gobo Holder: Standard “S4” size Sandwich Style or Iris Slot Style gobo holder for “A” or “B” size gobos

REQUIRED ACCESSORIES

• Lens Tube: 19°, 26°, 36°, 50°
