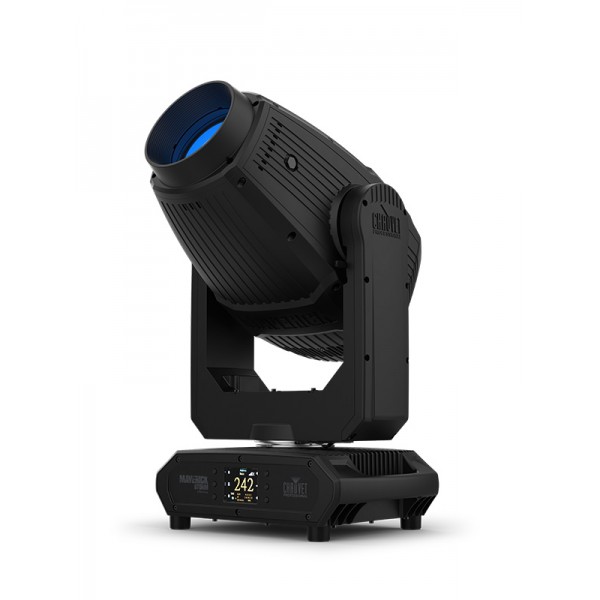

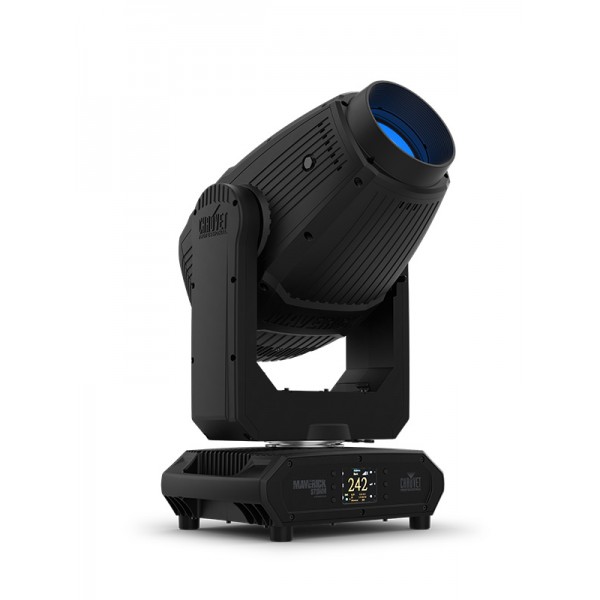

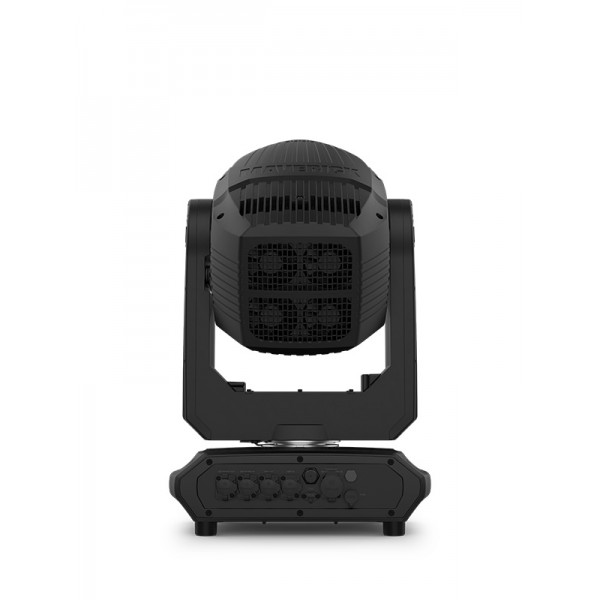

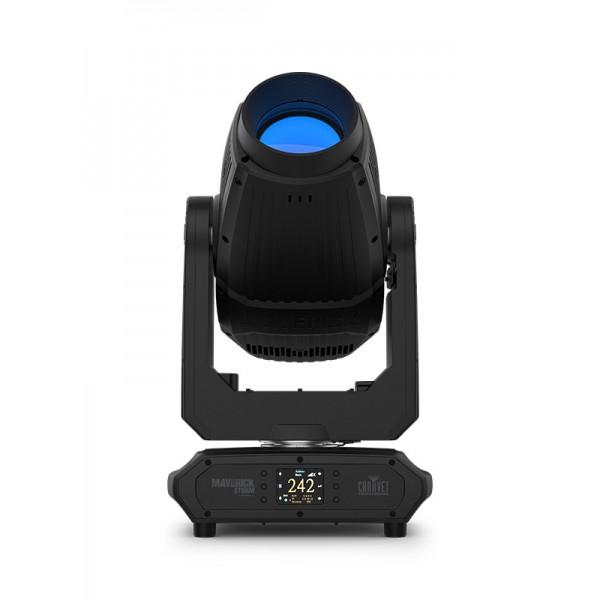

CHAUVET Maverick STORM 2 Profile

Maverick Storm 2 Profile fits a full armory of features into the lightest mid-sized IP65 moving profile in its division. Drafted to fill designer demand for a double-duty compact powerhouse that combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Sculpt its 28,00 lumens of output with an exquisitely sharp framing shutter system, zoom down to a slicing 5.5 degree beam, and freely create with a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down.

FEATURES

• Fully featured, compact and lightweight IP65 580 W LED yoke profile fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 10:1 zoom, a 5-facet prism wheel, 1 rotating and 1 static gobo wheel, integrated sun shield
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• One rotating, indexing and interchangeable slot and lock gobo wheel
• One rotating static gobo wheel
• DMX , WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 6.3° to 58.6° zoom range for variable beam sizes
• Iris, 5-facet prism and frost for beam control
• True 1 compatible power input
• Integrated sun shield for protecting the optical path from sunlight when the fixture is off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

• Light Source: 1 LEDs (CW) 580 W, (4.2 A), 7500 K, 50,000 hours life expectancy
• Color Temperature (at full): 6963 K
• CRI: 71.3
• CRI with CRI Filter: 89.1
• Front Lens Diameter: 127 mm
• Beam Angle: 6.3° to 42.6°
• Field Angle: 7.9° to 54.7°
• Cutoff Angle 8.2° to 58.6°
• Zoom Range: 5.5° to 58.6°
• Lumens – Source: 35,000
• Lumens – Output: 28,534
• Illuminance (6.3°) 71,933 lux @ 5 m
• Illuminance (58.6°) 2,580 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

 DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY flags, CTO flag
• Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9 + open (glass), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
• Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation: +/- 60° rotation.
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move-in-Black: Yes
• Dim Curves: 4

 CONSTRUCTION / PHYSICAL

• Dimensions: 9.92 x 15.28 x 27.52 in (252 x 388 x 699 mm)
• Weight: 67.0 lb (30.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

 CONNECTIONS

• Power Connection: Seetronic Powerkon IP65
• Power Input/Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power): 5 ft (1.5 m)

 CONTROL

• Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels: 32 or 48
• Art-Net Channels: 32 or 48
• Modes/Personalities: 2 personalities (32, 48)

 ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 800 W, 6.82 A @ 120 V, 60 Hz
• Power and Current: 779 W, 3.77 A @ 208 V, 60 Hz
• Power and Current: 763 W, 3.41 A @ 230 V, 50 Hz
• Breaker Size: F15 A, 250 V

 CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): 4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Maverick Storm 2 Profile
• Seetronic Powerkon IP65 power cord to Edison
• Omega bracket with mounting hardware

 OPTIONAL ACCESSORIES

• Professional Clamps : CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• DMX Cables
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 08 software uploader
• Micro T-1 TRX G5 WDMX Transceiver
• FLIGHT CASE TBA
