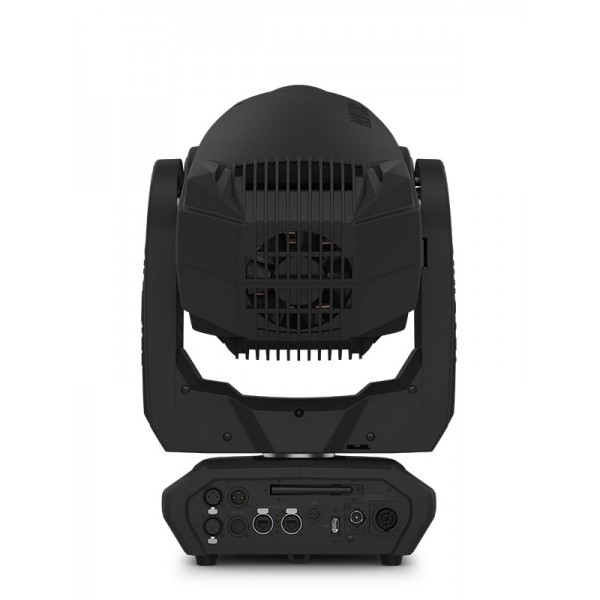

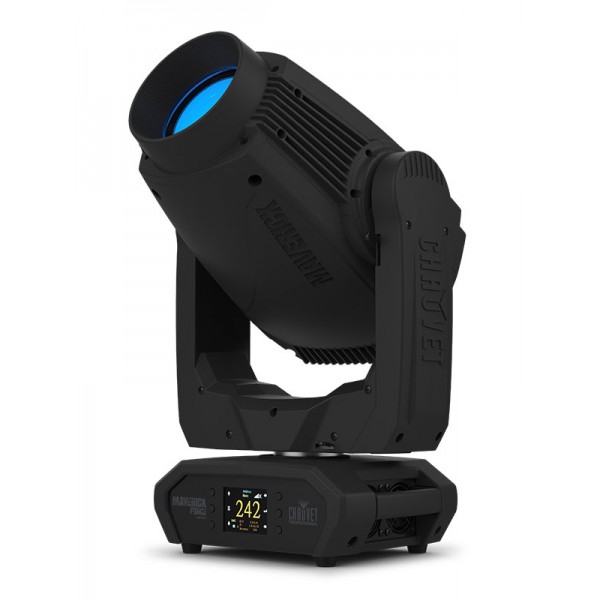

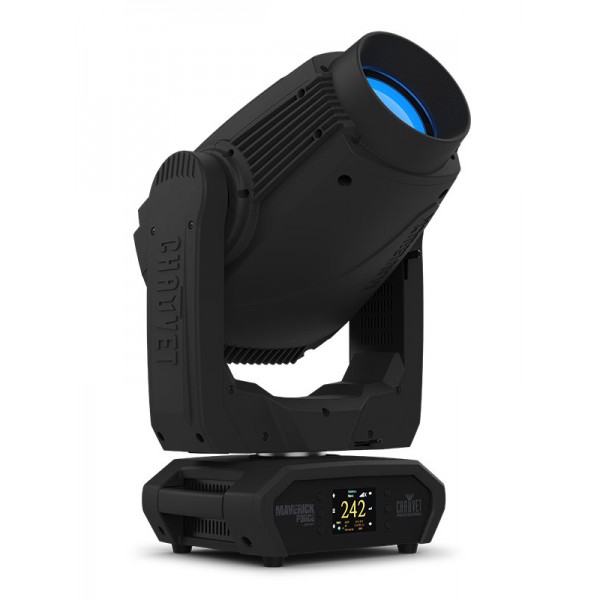

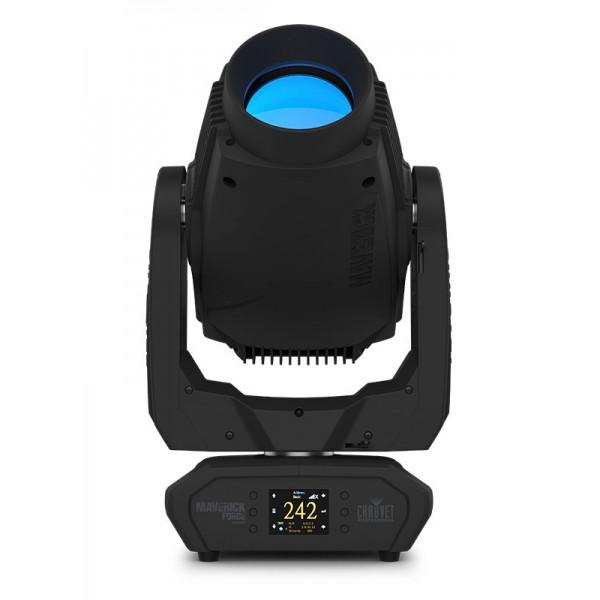

CHAUVET Maverick Force S Spot

https://store.cue-go.co.nz/web/image/product.template/73/image_1920?unique=c065a9a

MAVERICKFORCESSPOT

$ 7,849.00 7849.0 NZD $ 7,849.00 Including GST

$ 7,849.00 Including GST

POA

This combination does not exist.

Contact Us
Chauvet



Availability: In stock with supplier
Note: Stock levels around the Black Friday and Christmas periods change quickly, please contact us for an exact ETA if this order is urgent.

Maverick Force S Spot is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, and control options in a lightweight frame, well under 50 lbs. The compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color-mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S features a speedy effects engine that includes motorized iris, frost, focus, a 5-facet prism, and wide zoom ranging from 4° to 43°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.


FEATURES
  • Fully featured, compact and lightweight 350 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels, one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, WDMX, sACN, and Art-Net for full flexibility of control options
  • RDM Enabled for remote addressing and trouble shooting
  • 4.1° to 43.4° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • True 1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation



SPECIFICATIONS

OPTICAL

  • Light Source: 1 LED (CW) 350 W, (2.7 A), 8400 K, 50,000 hours life expectancy
  • Color Temperature (at full): 6858 K
  • CRI: 68.6
  • CRI with CRI filter: 89.6
  • Front Lens Diameter: 119 mm
  • Beam Angle: 4.1° to 36.5°
  • Field Angle: 5.1° to 40.4°
  • Cutoff Angle: 5.4° to 43.4°
  • Zoom Range: 4.1° to 43.4°
  • Lumens - Source: 20,000
  • Lumens – Output: 14,407
  • Illuminance (4.1°): 62,131 lux @ 5 m
  • Illuminance (43.1°): 1,745 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY Wheels
  • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (metal), static continuous scroll at variable speeds
  • Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

CONSTRUCTION / PHYSICAL

  • Dimensions: 14 x 8.8 x 25.0 in (360 x 224 x 636 mm)
  • Weight: 47.4 lb (21.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
  • DMX Channels: 22 or 29
  • Art-Net Channels: 22 or 29
  • Modes/Personalities: 2 personalities (22, 29)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V; 5 units @ 240 V
  • Power and Current: 554 W, 5.54 A @ 100 V, 60 Hz[6.0 A in-rush]
  • Power and Current: 542 W, 4.53 A @ 120 V, 60 Hz[7.0 A in-rush]
  • Power and Current: 522 W, 2.58 A @ 208 V, 60 Hz[15.0 A in-rush]
  • Power and Current: 521 W, 2.33 A @ 230 V, 50 Hz[15.0 A in-rush]
  • Power and Current: 521 W, 2.26 A @ 240 V, 50 Hz[15.0 A in-rush]
  • Power and Current (resting): 77 W, 0.904 A @ 100 V, 60 Hz
  • Power and Current (resting): 77 W, 0.701 A @ 120 V, 60 Hz
  • Power and Current (resting): 76 W, 0.418 A @ 208 V, 60 Hz
  • Power and Current (resting): 73 W, 0.375 A @ 230 V, 50 Hz
  • Power and Current (resting): 74 W, 0.368 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Noise Level (ambient): 37.5 dB level @ 1 m
  • Noise Level (Static - Full): 40.9 dB level @ 1 m
  • Noise Level (Static - Eco): 37.9 dB level @ 1 m
  • Noise Level (Static - Auto): 38.4 dB level @ 1 m
  • Noise Level (Max): 45.5 dB level @ 1 m
  • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
  • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)


WHAT'S INCLUDED
  • Maverick Force S Spot
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Quick Reference Guide

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Safety Cable: SC-07
  • DMX cables
  • Ethercon extension cables
  • IP Rated Seetronic® Powerkon Extensions
  • Flight Case:
  • UPLOAD_08 software uploader
