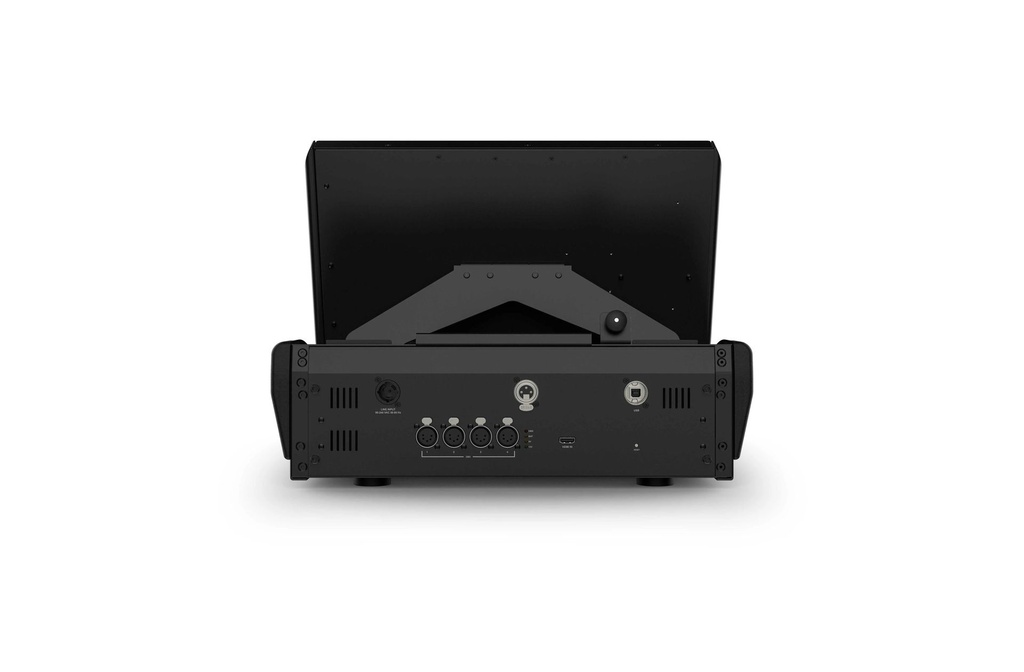

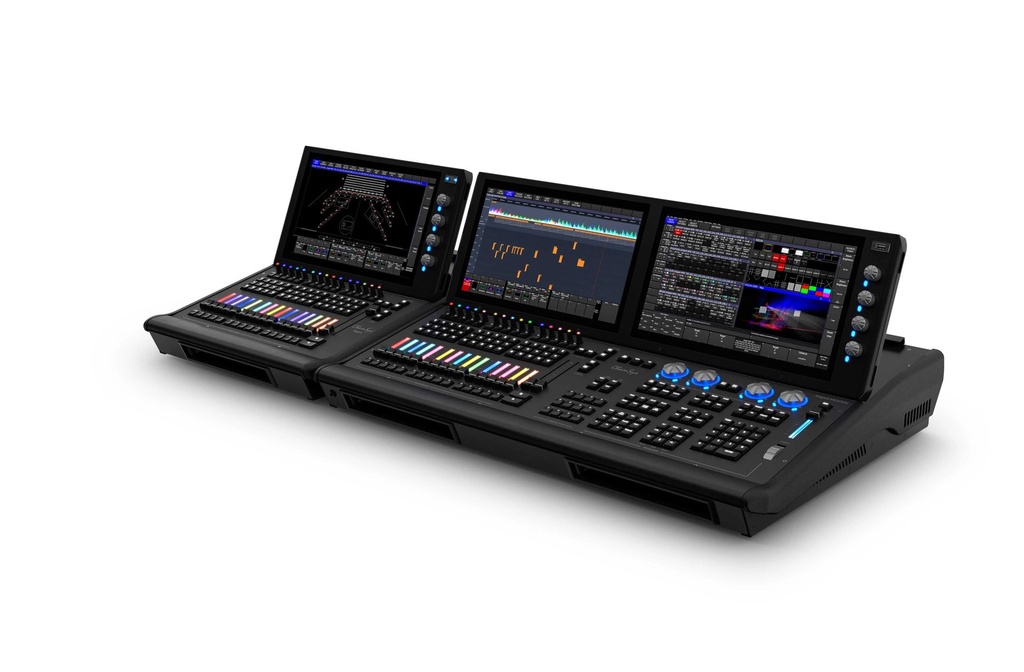

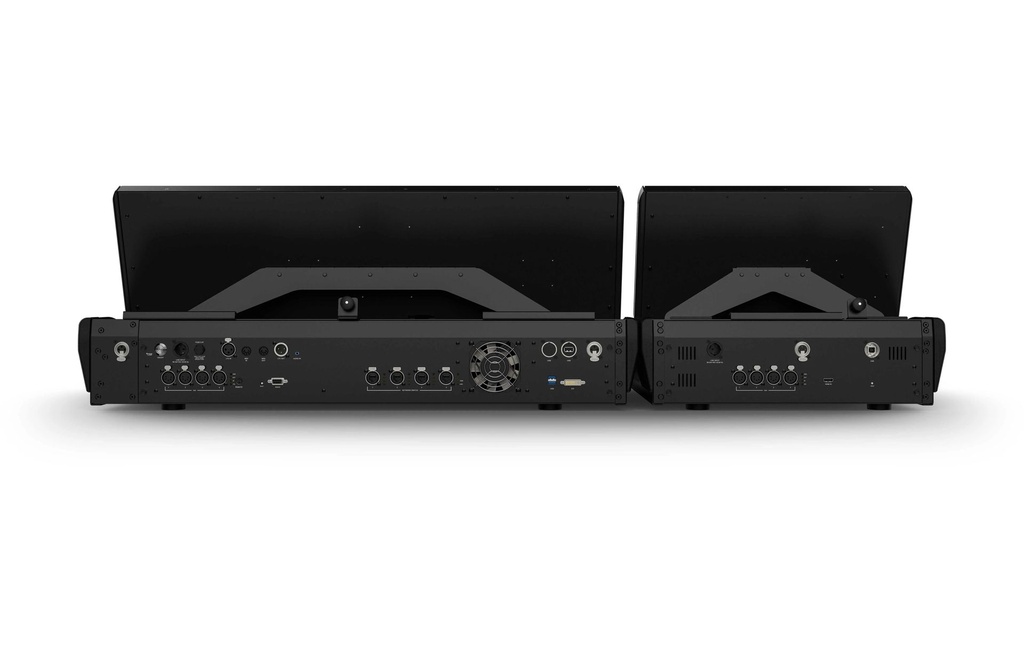

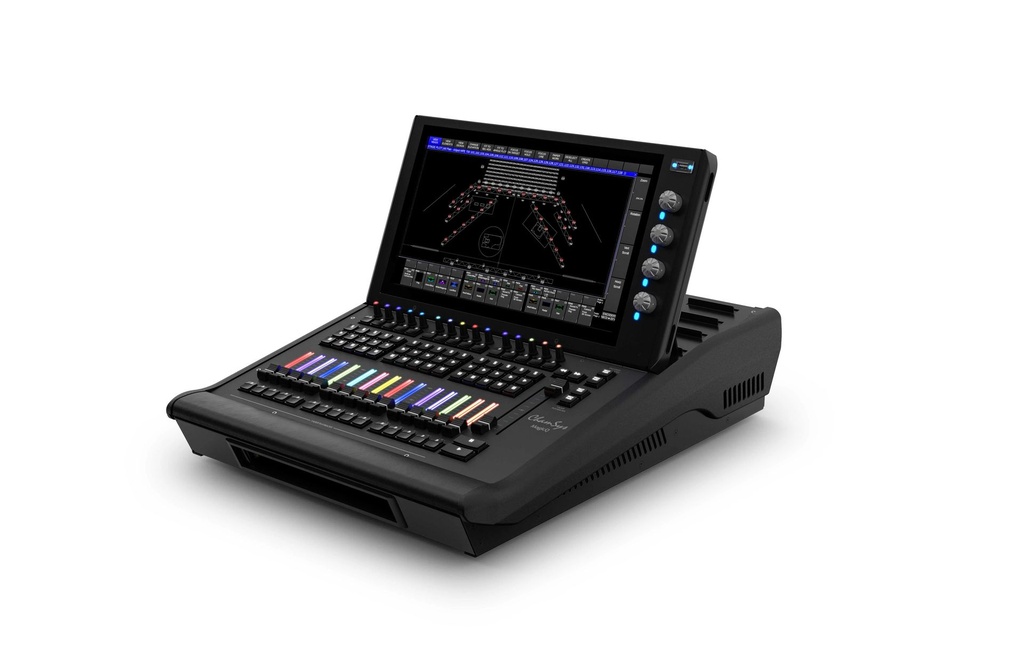

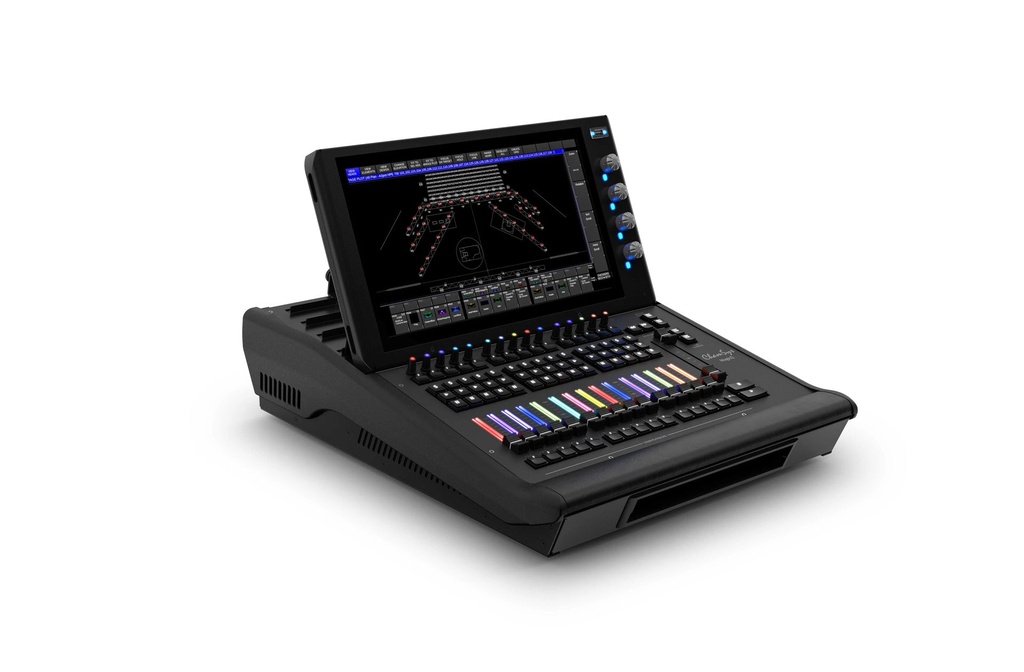

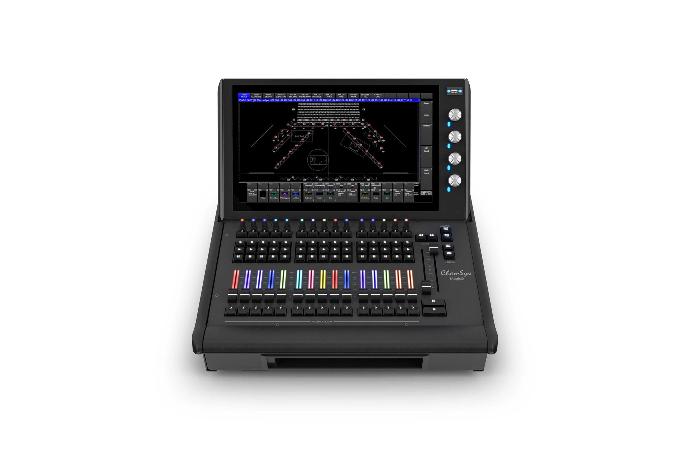

ChamSys MQ500M WING

https://store.cue-go.co.nz/web/image/product.template/60/image_1920?unique=9d93309

CS100434

$ 19,849.00 19849.0 NZD $ 19,849.00 Including GST

$ 19,849.00 Including GST

POA

This combination does not exist.

Contact Us
ChamSys



Availability: In Stock
Note: Stock levels around the Black Friday and Christmas periods change quickly, please contact us for an exact ETA if this order is urgent.

MagicQ MQ500M Stadium Wing is designed to operate with the MagicQ MQ500M Stadium console at the highest level of show control. MQ500M Stadium Wing features 30 playbacks in total: 15 motorised faders and 15 encoder playbacks all with RGB illumination. The wing also incorporates a full HD multitouch display, 4 DMX outputs, and in-built UPS.


FEATURES
  • Compatible with MagicQ MQ500M Stadium console
  • 15 fully motorised fader playbacks
  • 15 encoder playback with RGB indicators
  • RGB illumination of playbacks
  • Backlit buttons
  • 15" Multi touch HD display
  • Dual motorised 100mm crossfaders ideal for Theatre
  • 4 assignable DMX ports



HARDWARE SPECIFICATIONS
  • Motorised Playbacks: 15
  • Encoder Playbacks: 15
  • Total no of Playbacks: 30 (15+15)
  • Dual Motorised Cross Faders: Yes
  • Execute Encoders: 4
  • Backlit Keys: Yes
  • Direct DMX Outputs: 4
  • Illuminated Playback/Encoders with RGB control: Yes
  • Inbuilt 15" HD Multi-Touch Display: 1
  • High Power USB Port: 1
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Front Storage Pocket: 1
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC


SOFTWARE SPECIFICATIONS
  • Max Number of DMX Channels: 131,072
  • Max Number of Fixtures Supported: 131,072
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)


INCLUDED ACCESSORIES
  • Dual Colour Desk light: 1
  • Dust cover: 1
  • Neutrik powerCON TRUE1 Power Cable: 1
  • Neutrik USB A-B connection cable: 1
  • Standard USB A-B connection cable: 1
  • HDMI to HDMI connection cable: 1
  • HDMI to DVI connection cable: 1


BOXED WEIGHTS AND DIMENSIONS
  • Width: 690mm (21 inches)
  • Depth: 590mm (23.3 inches)
  • Height: 340mm (13.3 inches)
  • Weight: 21kg (46.2 lb)


FLIGHT CASED WEIGHTS AND DIMENSIONS
  • Width: 690mm (21 inches)
  • Depth: 590mm (23.2 inches)
  • Height: 340mm (13.3 inches)
  • Weight (console in flight case): 36kg (79 lb)


CONSOLE WEIGHTS AND DIMENSIONS
  • Width: 471mm (18.5 inches)
  • Depth: 587mm (23 inches)
  • Height: 85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches)
  • Weight: 19kg (41.9 lb)

All prices are inclusive of GST and exclusive of freight, which is automatically calculated on order confirmation and/or checkout. Items in stock are generally dispatched within 1-2 working days of order being confirmed.
