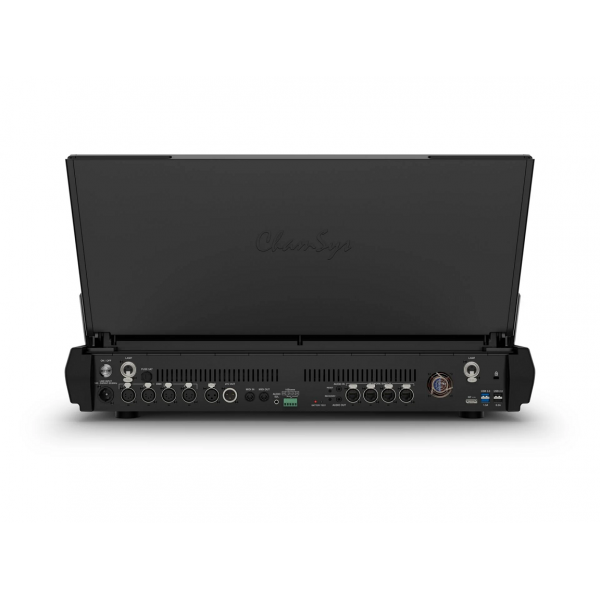

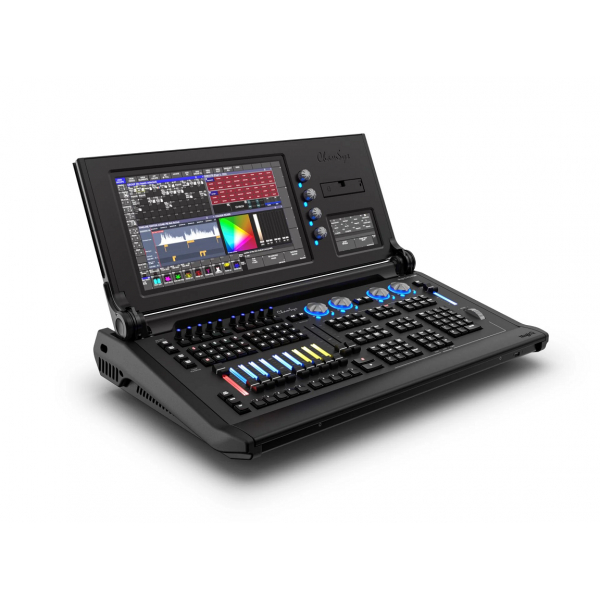

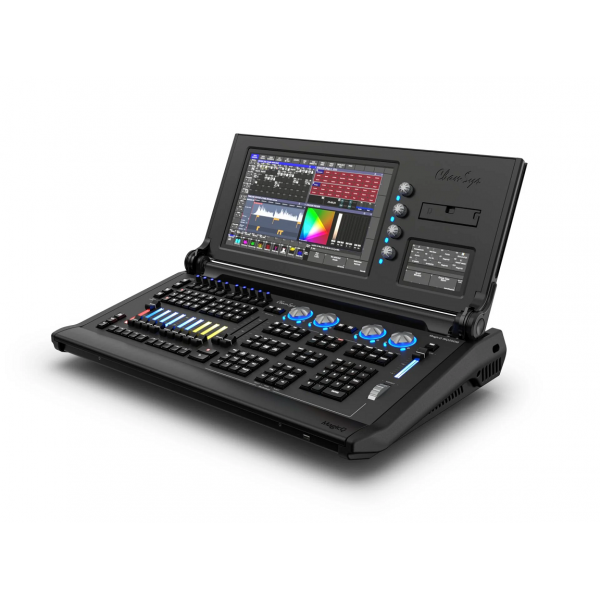

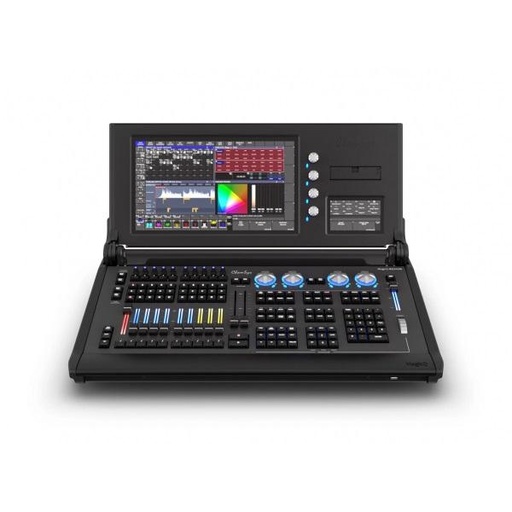

ChamSys MQ250M

https://store.cue-go.co.nz/web/image/product.template/59/image_1920?unique=9d93309

CS100250

$ 44,849.00 44849.0 NZD $ 44,849.00 Including GST

$ 44,849.00 Including GST

POA

This combination does not exist.

Contact Us
ChamSys



Availability: In Stock
Note: Stock levels around the Black Friday and Christmas periods change quickly, please contact us for an exact ETA if this order is urgent.

MagicQ MQ250M Stadium combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with. 10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in


FEATURES
  • 64 universes direct from the console, with 128 universe upgrade option
  • 10 fully motorised fader playbacks
  • 10 encoder playbacks
  • RGB illumination of playbacks
  • Backlit buttons
  • Inbuilt 15" Multi HD touch display
  • Dedicated 5" Attribute/Encoder touch display
  • Dual 100mm Manual Cross Faders
  • 2 dedicated high power USBs for charging of phones/tablets
  • Inbuilt Wi-Fi connects to MagicQ Remote control app



HARDWARE SPECIFICATIONS
  • Universes direct from the console (via Artnet/sACN/Pathport): 64* expandable to 128
  • Direct DMX Outputs: 4
  • Motorised Playbacks: 10
  • Encoder Playbacks: 10
  • Total no of Playbacks: 20 (10+10)
  • Dual Cross Faders: Yes
  • Attribute Encoders: 8
  • Backlit Keys: Yes
  • Illuminated Playback/Encoders with RGB control: Yes
  • Intensity Wheel: 1
  • Network Ports: 4
  • Inbuilt 15" HD Multi-Touch Displays: 1
  • Inbuilt Attribute/Execute display: 1
  • External Monitor up to 1920x1200 Resolution - Display Port: 1
  • USB Ports, including 2 High Power USBs: 6
  • Audio Input (1 channel, 7 band): Yes
  • Audio Input Sound to Light: Yes
  • Audio Output: Yes
  • MIDI Ports 1 in and out: Yes
  • LTC Timecode Ports in and out: Yes
  • 10Scene Port: 1
  • Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
  • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC


SOFTWARE SPECIFICATIONS
  • Max Number of DMX Channels: 32,768 *expandable to 65,536
  • Max Number of Fixtures Supported: 32,768 *expandable to 65,536
  • Max Number of Cues: 5000
  • Max Number of Cue Stacks: 2000
  • Max Number of Groups: 5000
  • Max Number of Palettes: 4096
  • Number of Media Server Layers Supported: 50 (each different content)
  • Numbers of Shows: Virtually unlimited (500GB SSD)


INCLUDED ACCESSORIES
  • Dual Colour Desk lights: 2
  • Dust cover: 1
  • Neutrik powerCON TRUE1 Power Cable: 1
  • Display port to HDMI Cable: 1


FLIGHT CASED WEIGHTS AND DIMENSIONS
  • Width: 810mm (31.9 inches)
  • Depth: 530mm (20.9 inches)
  • Height: 320mm (12.6 inches)
  • Weight (console in flightcase): 26kg (57.3lbs)


CONSOLE WEIGHTS AND DIMENSIONS
  • Width: 680mm (26.7")
  • Depth: 416mm (16.3")
  • Height: 159mm (6.25")
  • Weight: 13kg (28.6lbs)

All prices are inclusive of GST and exclusive of freight, which is automatically calculated on order confirmation and/or checkout. Items in stock are generally dispatched within 1-2 working days of order being confirmed.
