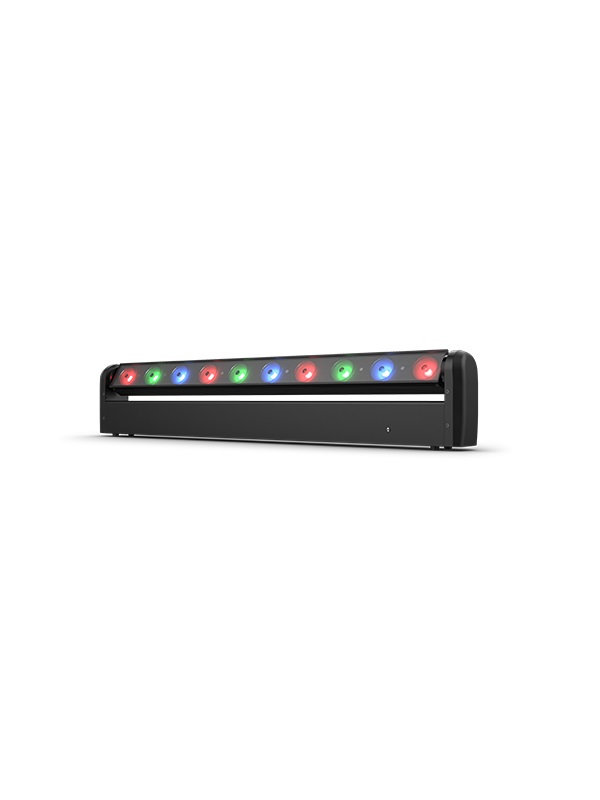

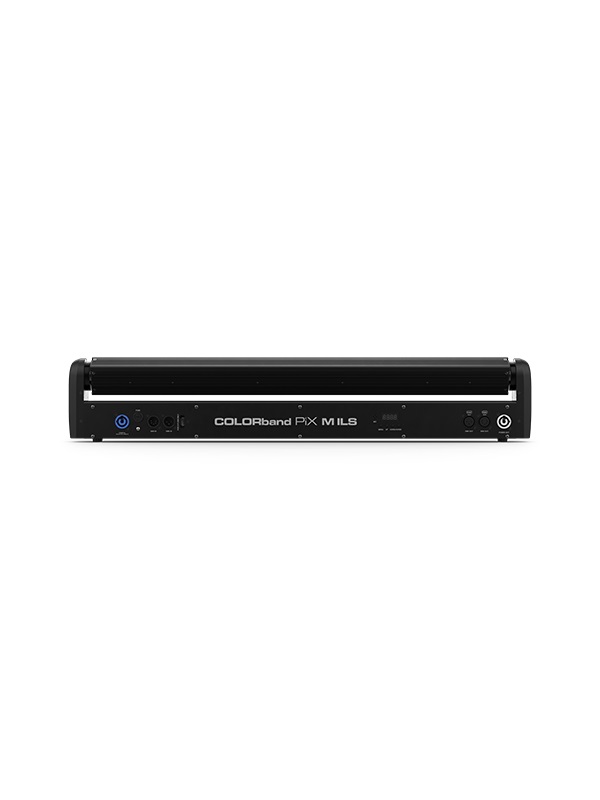

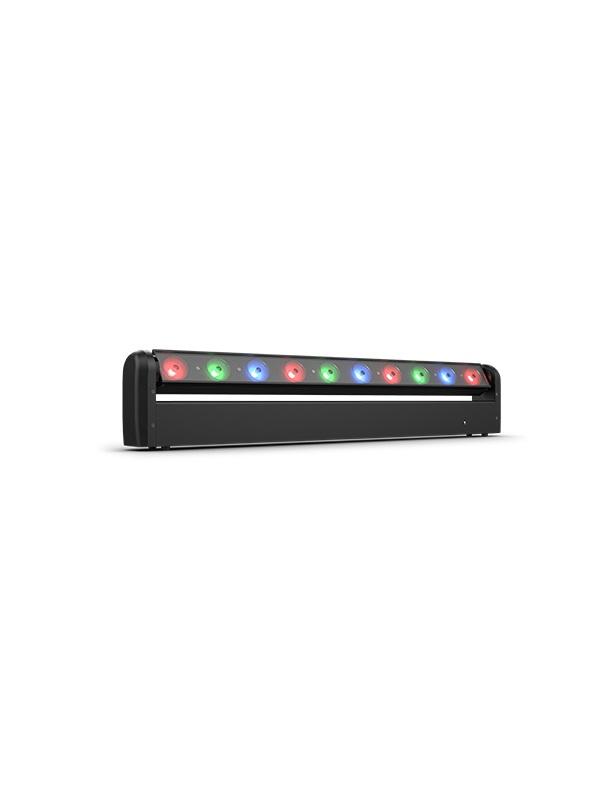

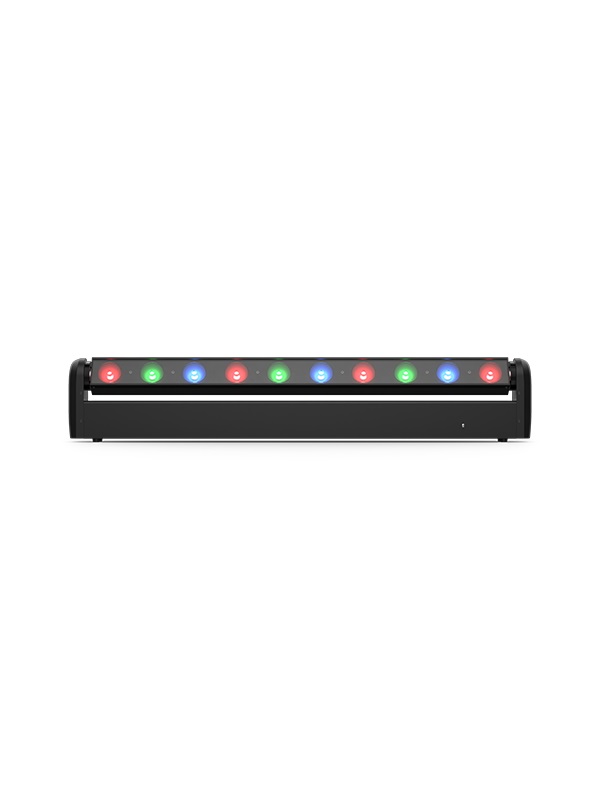

Add the power of a full-size linear wash light with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy! This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors. But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.
FEATURES
- Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- ILS compatibility for use in the ILS ecosystem
- D-Fi USB compatibility for wireless master/slave or DMX control
- Flexible control options with onboard 3 and 5-pin DMX connectors
- Angle the light where it’s needed using the built-in motors
- Create eye-catching animations and video effects with individual LED control
- powerCON®-compatible power input/output connections for power linking
- Fits best in the CHS-60 VIP Gear Bag
SPECIFICATIONS
- DMX Channels: 5, 6, 8 ,10, 17, 32, or 36
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 10 LEDs (tri-color RGB) 6 W, (2A), 50,000 hours life expectancy
- Strobe Rate: 0 to 29 Hz
- Beam Angle: 15°
- Field Angle: 27°7,441 lux @ 2 m
- Illuminance: 7,441 lux @ 2 m
- Power Linking: 12 units @ 120 V; 20 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 86 W, 1.2 A @ 120 V, 60 Hz
84 W, 0.7 A @ 230 V, 50 Hz - Weight: 8.2 lb. (3.7 kg)
- Size: 31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
- Approvals: CE, UKCA, ROHS
- Tilt: 245°
- Bracket Mounting Hole: 13 mm
- Optional Controllers: RFC, RFC-XL
WHAT'S INCLUDED
- COLORband PiX-M ILS
- Power cord
- Quick Reference Guide
