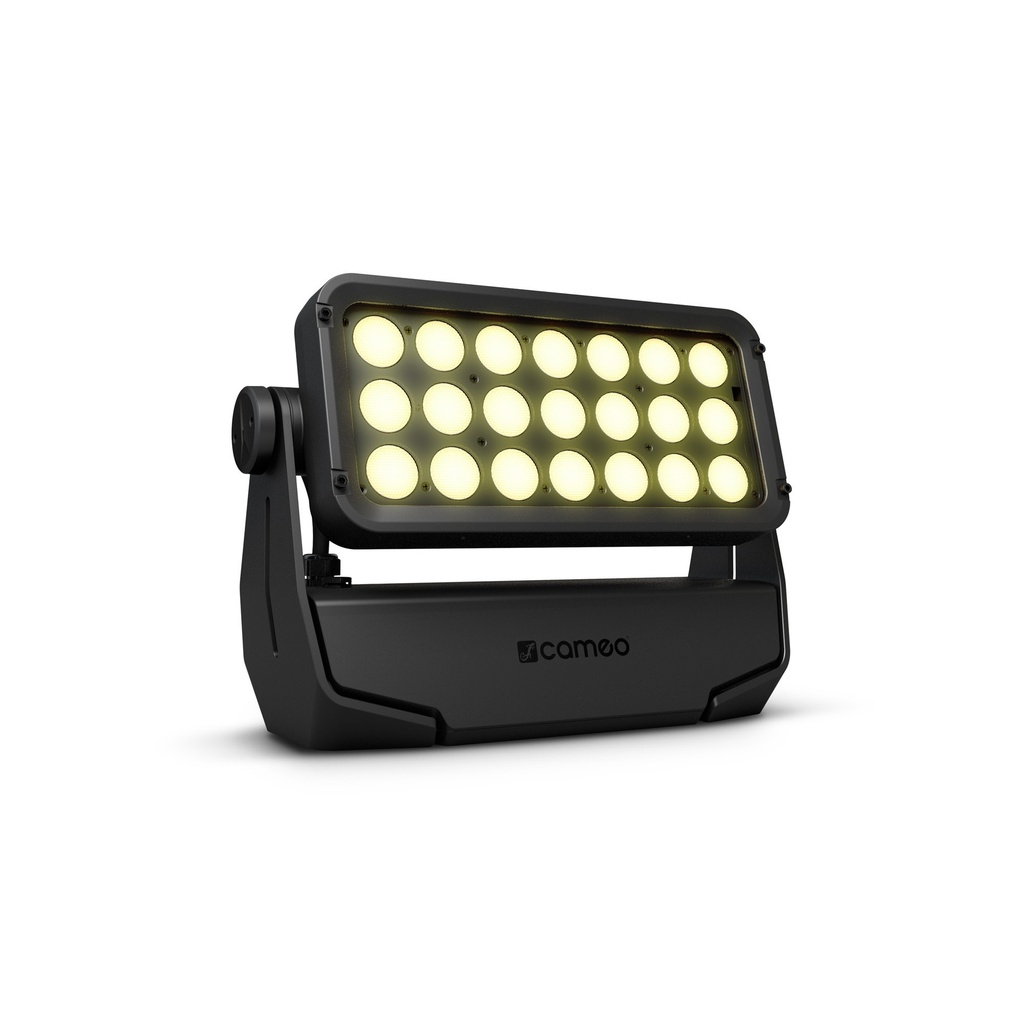

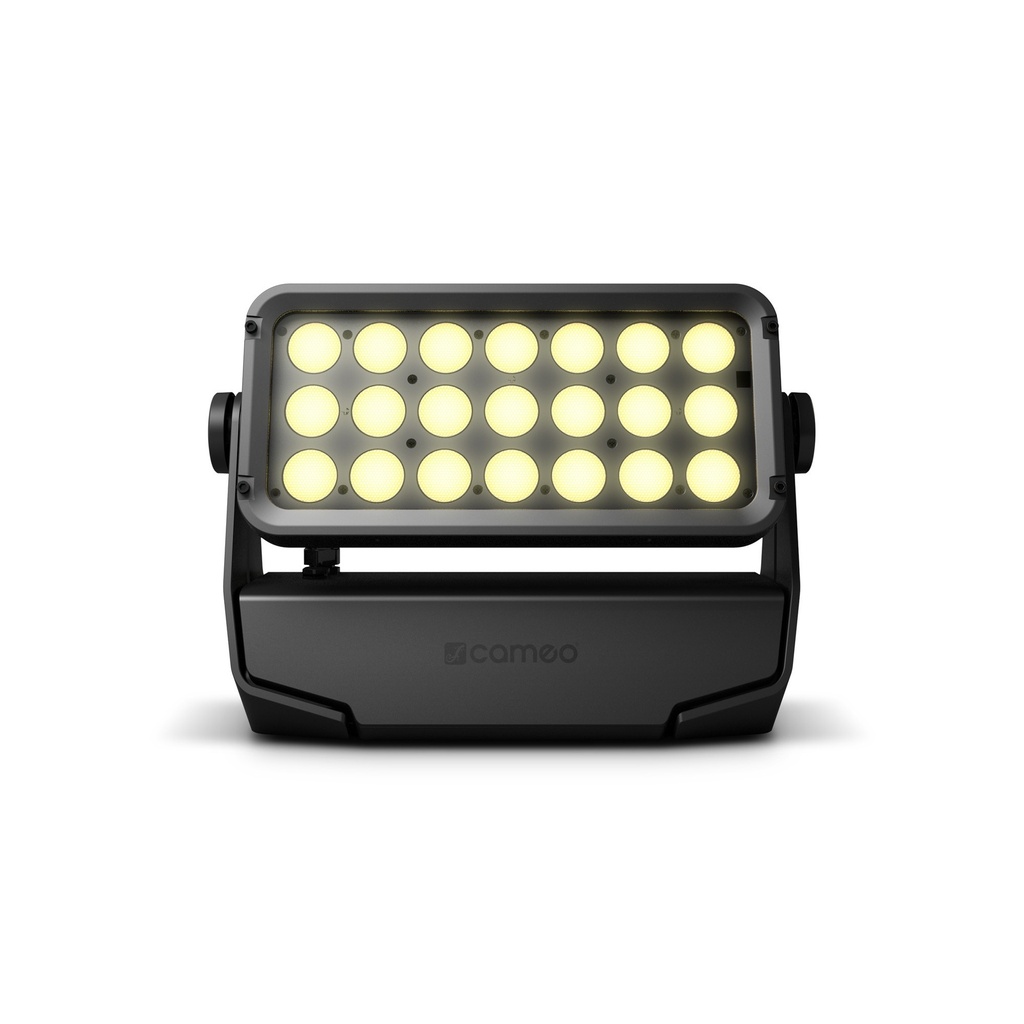

With 21 x 15 W RGBW LEDs in total, the ZENIT® W300i powerfully projects up to 11,000 lm precisely onto any structure, whether it's a bizarre building, rough facades or nature's diverse range of architectural creations. Lighting designers can use the sophisticated 16-bit technology for high-resolution colour mixing and dimming to create intense, uniform coloured or white patterns, bathing even the largest buildings in perfect light. The ZENIT® W300i is transformed into a versatile professional architectural lighting tool when it's combined with the built-in colour temperature correction (CTC) and LED colour correction features and selectable dimming curves, including the option to simulate a halogen lamp's dimming behaviour. Initial set-up can be easily carried out using RDM or the optionally available external display.
Compared to its bigger counterpart - the ZENIT® W600i (40 × 15 W; 21,000 lumens) - the ZENIT® W300i has smaller housing dimensions, making it is even more suitable for lighting objects in almost any location and from any angle. Lighting designers and technicians have nothing to worry about here: The W300i is IP67 rated and optimally protected against temporary submersion. Even harsh maritime environments are no big challenge thanks to the C5-M certified housing coating.
FEATURES
- 21 × 15 W RGBW LEDs with 11,000 lm luminous flux for intense, uniform mixing of colours
- Configuration only possible via RDM or with the ZENIT® REMOTE DISPLAY CONTROLLER (CLZIEXDISP) - available separately
- 18° beam angle and 35° field angle without a diffuser
- Optional SnapMag® filter frames for flexible symmetric and asymmetric beam angles, installation possible without tools or securely fastened
- IP67 rating for permanent outdoor use
- C5-M certified anti-corrosion coating
- High-resolution colour mixing and dimmer response with 16-bit technology
- Control via DMX, RDM (via DMX) and automated programmes

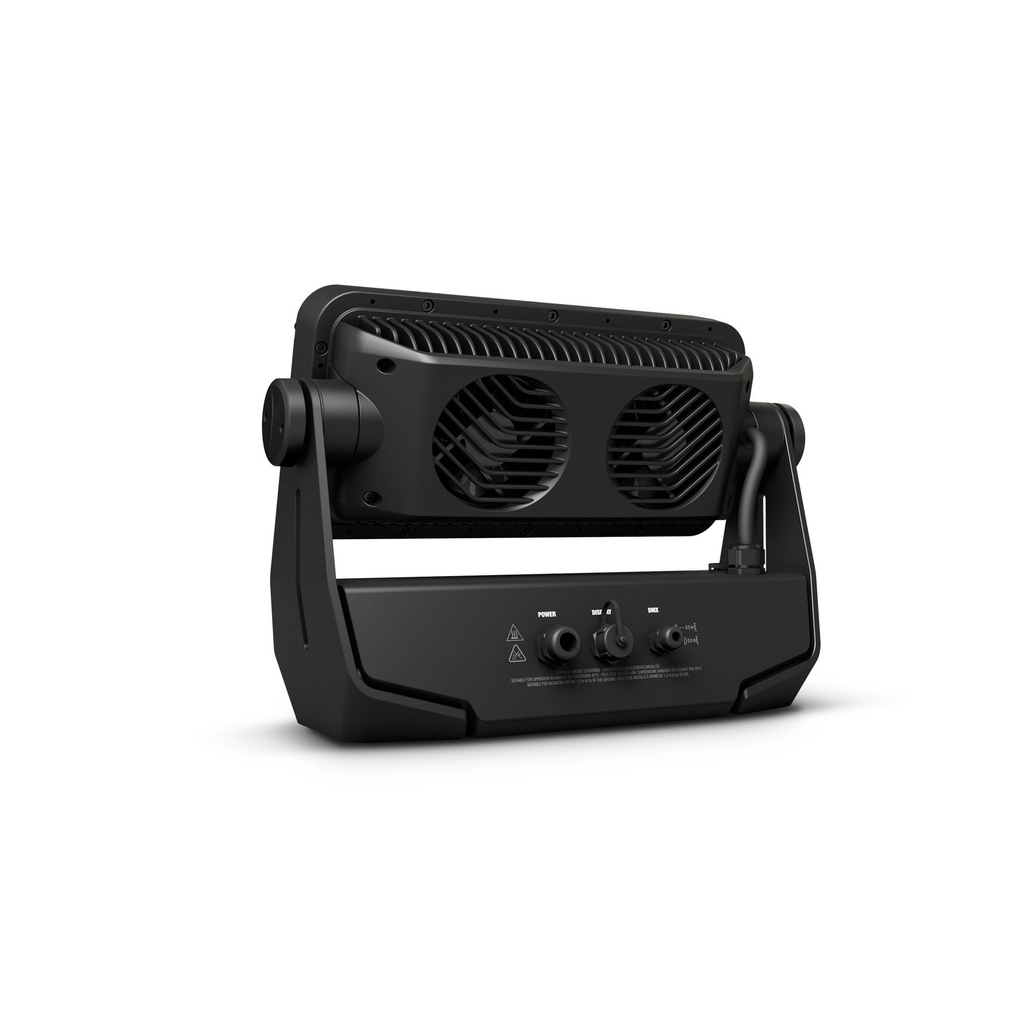

- Temperature-controlled fans for optimised, silent operation
SPECIFICATIONS
- Colour spectrum: RGBW
- Number of LEDs: 21
- LED type: 15 W
- Average LED lifetime: > 20000 hours
- Refresh rate: Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
- Dispersion: 18 ° Beam, 35 ° Field
- Lens: PE and tempered glass
- DMX input: Block connector / RJ45
- DMX output: Block connector / RJ45
- DMX mode: 10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel
- Standalone modes: Auto programs, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, Strobe
- Power supply: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 250 W
- Power factor: 0.95 / 230 V, 0.99 / 120 V
- Housing material: Die-cast aluminium
- Cabinet colour: Black
- Protection class IP: IP67
- Cooling: Combination of Heat Pipe and Temperature Controlled Fan
- Luminous flux: 11000 lm
- Efficiency: 37.2 lm/W
- Operating Temperature: -15 - 45 °C
