Cameo OPUS SP5 Profile
CLOSP5P
Stock:
Special Order
Note:
Stock is updated periodically. While we strive to reflect accurate availability, real-time stock status is not guaranteed. Please contact us for precise delivery timeframes.

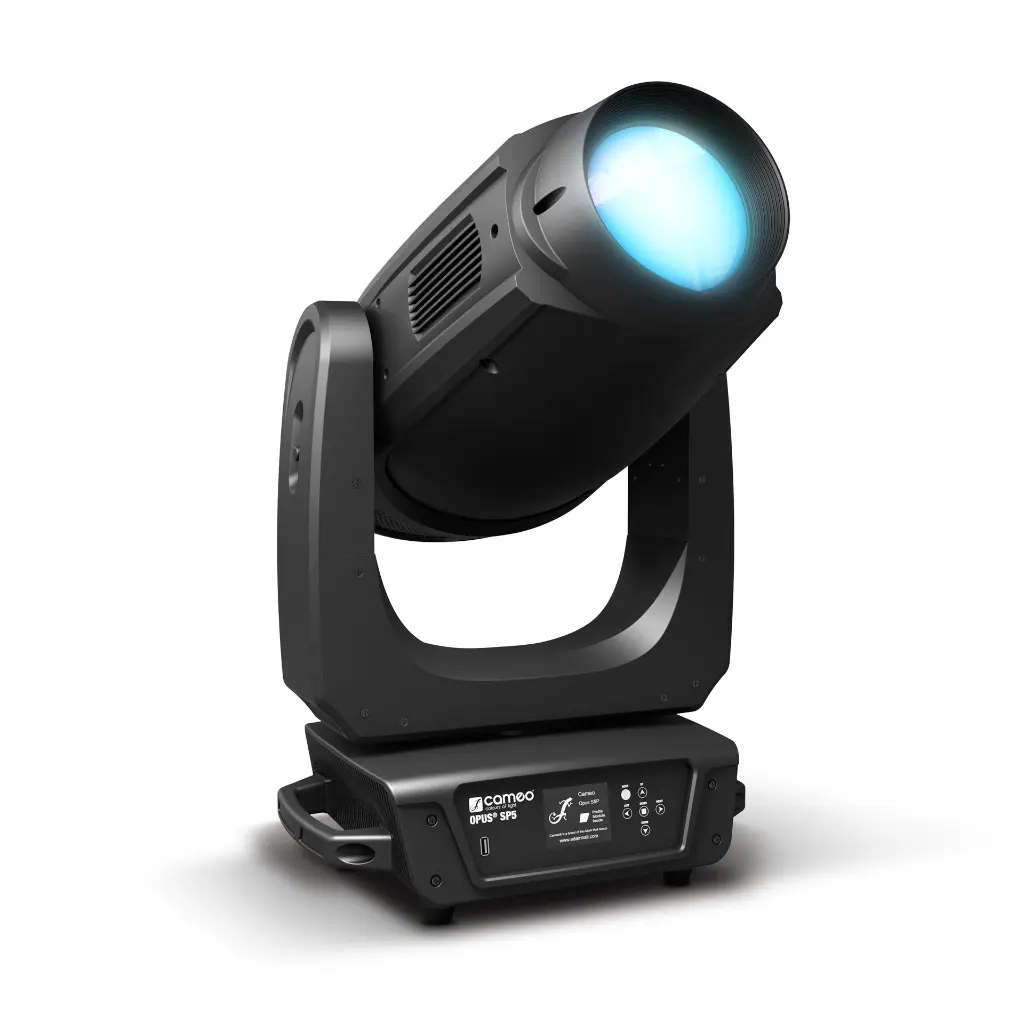

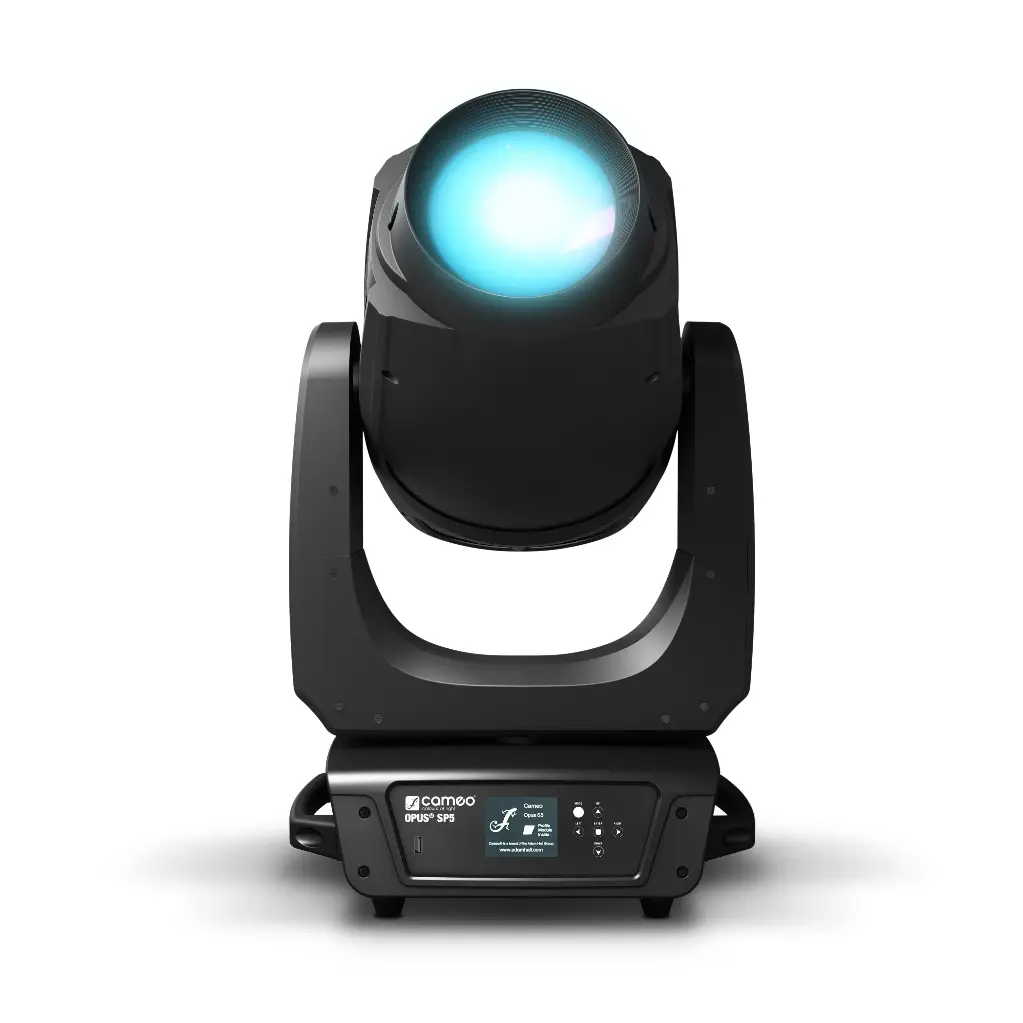

Producing brilliant, lively colours, the super bright Cameo OPUS® SP5 profile moving head is your ideal multi-purpose tool for precision illumination with a rich variety of effects. It is equipped with a powerful 500 W cool white LED engine, a CMY colour mixing system and linear CTO correction. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour beams. The luminairre has an enormous 15,000 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement.
To create a rich variety of geometric shapes, the OPUS® SP5 features a framing system with 4 shutter blades which can each be moved and angled independently within the frame or gradually closed for total blackout. Allowing precise shape orientation, the whole system can be rotated by +/- 45°. Two gobo wheels with 7 rotating and 8 static glass gobos generate stunning morphing effects when used simultaneously. For amazingly vivid projections, they can be used in combination with an animation wheel that is available as accessory to replace the framing shutter system. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.
FEATURES
- Super bright Profile Moving Head with 15.000 lm output and huge illuminance of 39,000 lux @ 5 m
- Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
- Linear CTO correction from 6,500 - 2,600 K for authentic tungsten emulation
- High quality optics with 130 mm front lens and extra wide 6° - 42° zoom range
- Even and flat projection field without hot spots at any zoom angle
- 4-blade framing system with +/- 45° rotation
- Angle and position of each shutter blade individually controllable up to full blackout
- Animation wheel module to replace framing shutter (available as accessory)
- Rotating gobo wheel with 7 replaceable indexable glass gobos + open
- Static gobo wheel with 8 replaceable glass gobos + open
- Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
- Variable frost for washlight effects plus stepless iris
- Ultra smooth 16-bit dimming with 4 selectable curves
- Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz

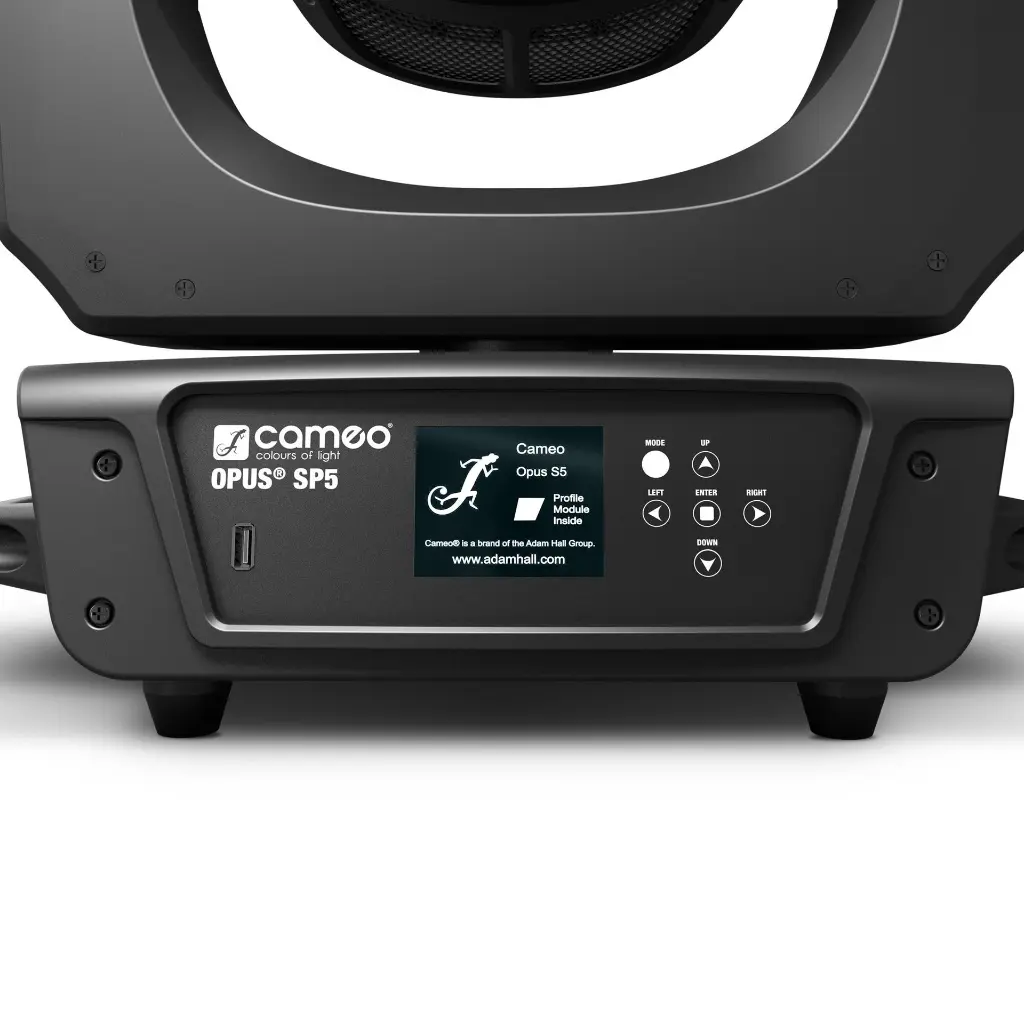

- Battery powered touchscreen display plus 6 touch buttons for offline configuration
- Flexible control via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
SPECIFICATIONS
- Colour spectrum: Cold white
- Number of LEDs: 1
- Color temperature: 6600 K
- Average LED lifetime: > 20000 hours
- LED type: 500 W
- Refresh rate: adjustable to 25000 Hz
- Dispersion: 6 - 42 °

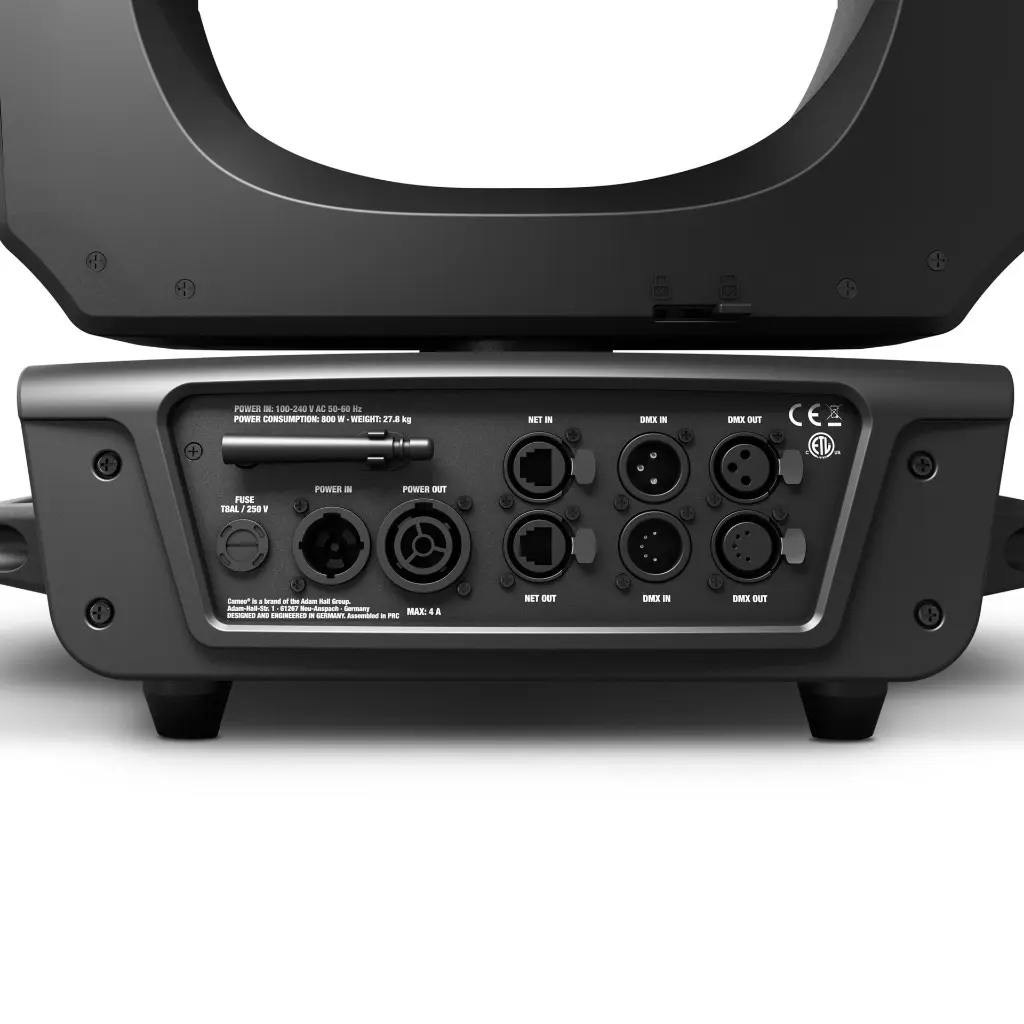

- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- DMX mode: 34-channel, 50-channel
- PAN movement: 540°
- TILT movement: 270°
- High Speed Strobe: > 20 Hz
- Standalone modes: Auto Mode, Device Settings, Static
- Controls: Enter, Mode, Touch screen, Value Down, Value Up
- Indicators: Graphic Display, Touch-Graphic Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 800 W
- Efficiency: 29.6 lm/W
- Ambient temperature (operating):-15 - 45 °C
- Power supply connector: TRUE1 Compatible Power I/O Socket
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Heat-pipe cooling system with temperature controlled fans
- Illuminance: 100,000 lx @ 3m, 39000lx @ 5m
- Luminous flux: 14800 lm
- Dimensions (W x H x D): 380 mm x 710 mm x 250 mm
- Weight: 27.8 kg
WHAT'S INCLUDED
- 2 x Omega Clamp
- Power cord
