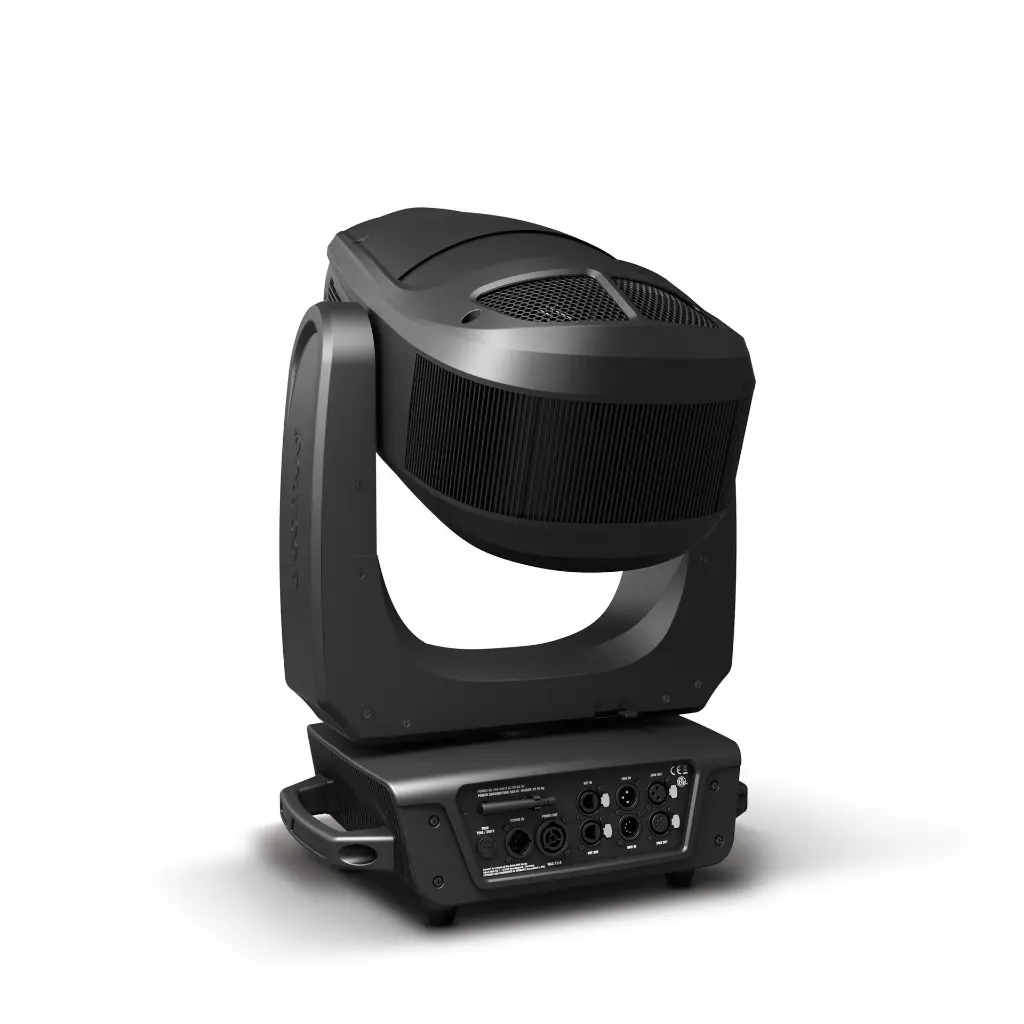

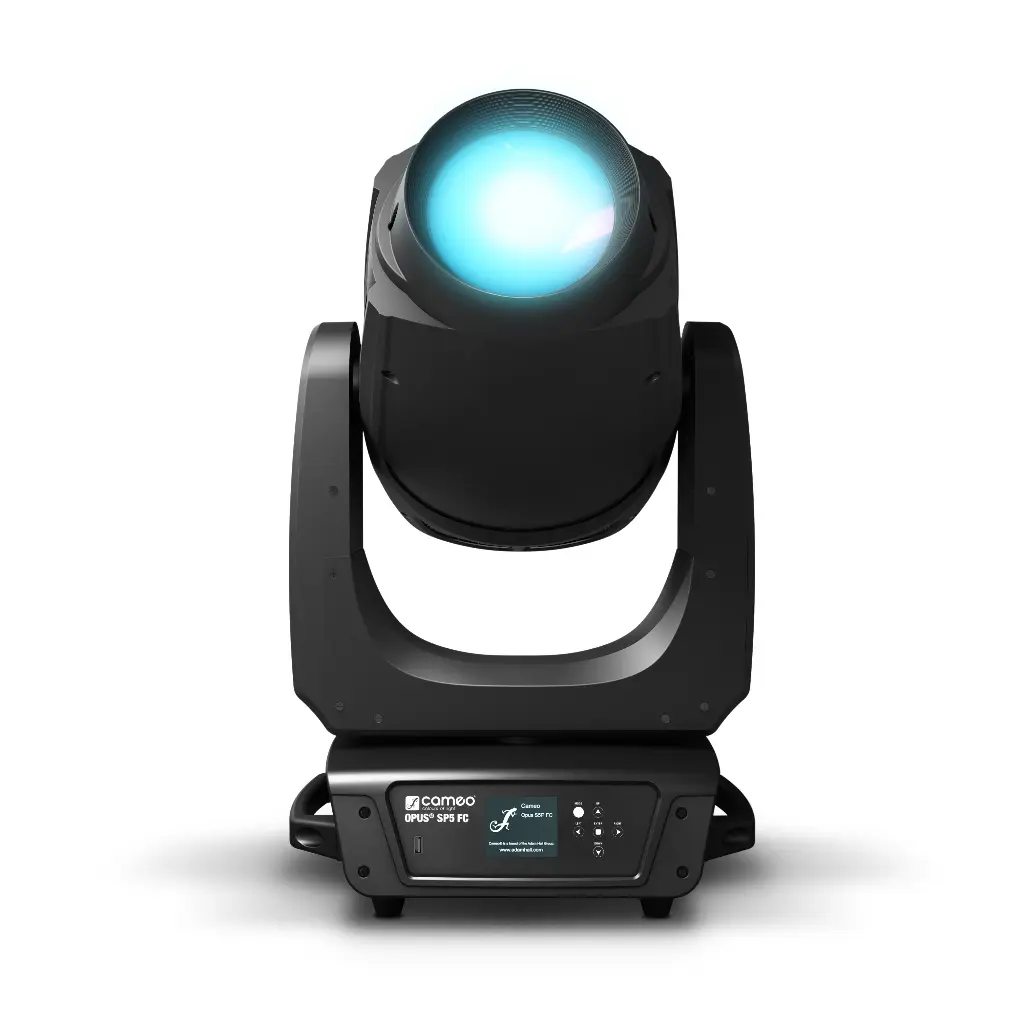

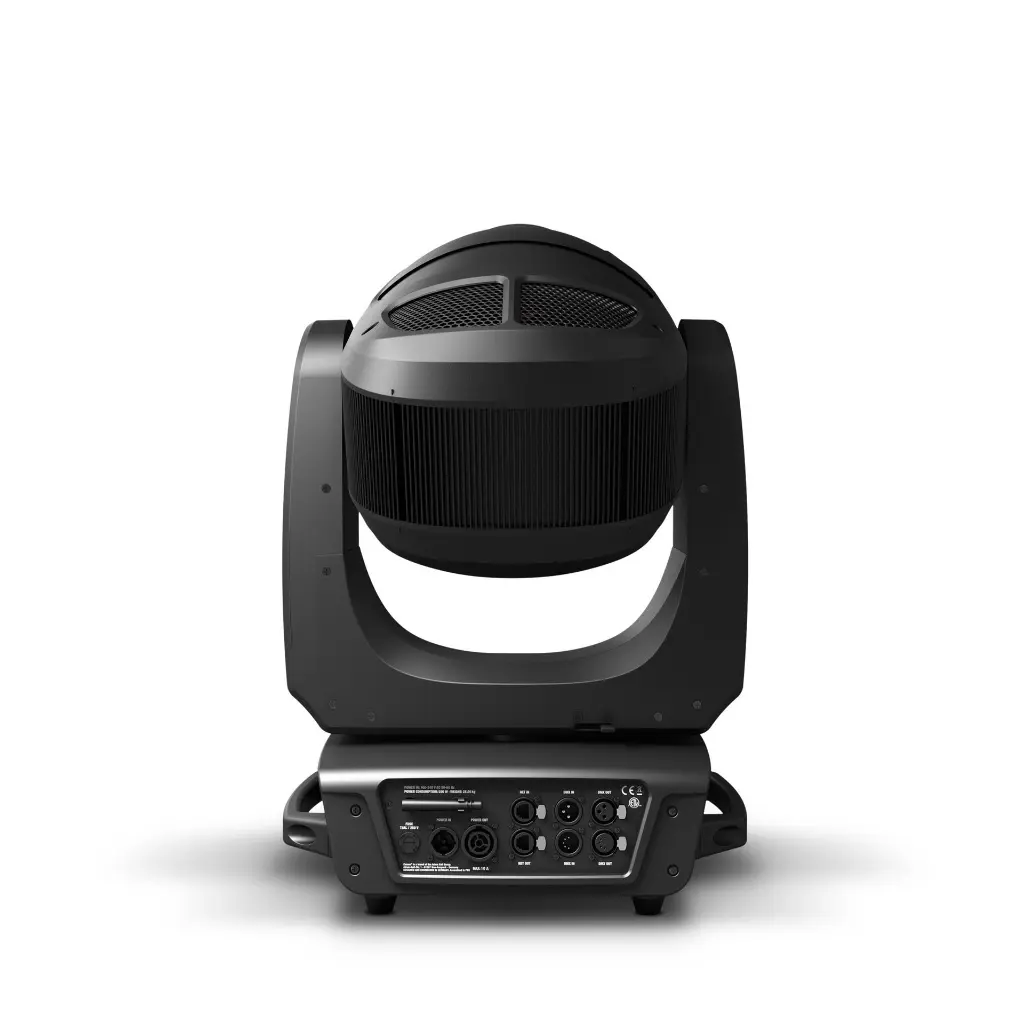

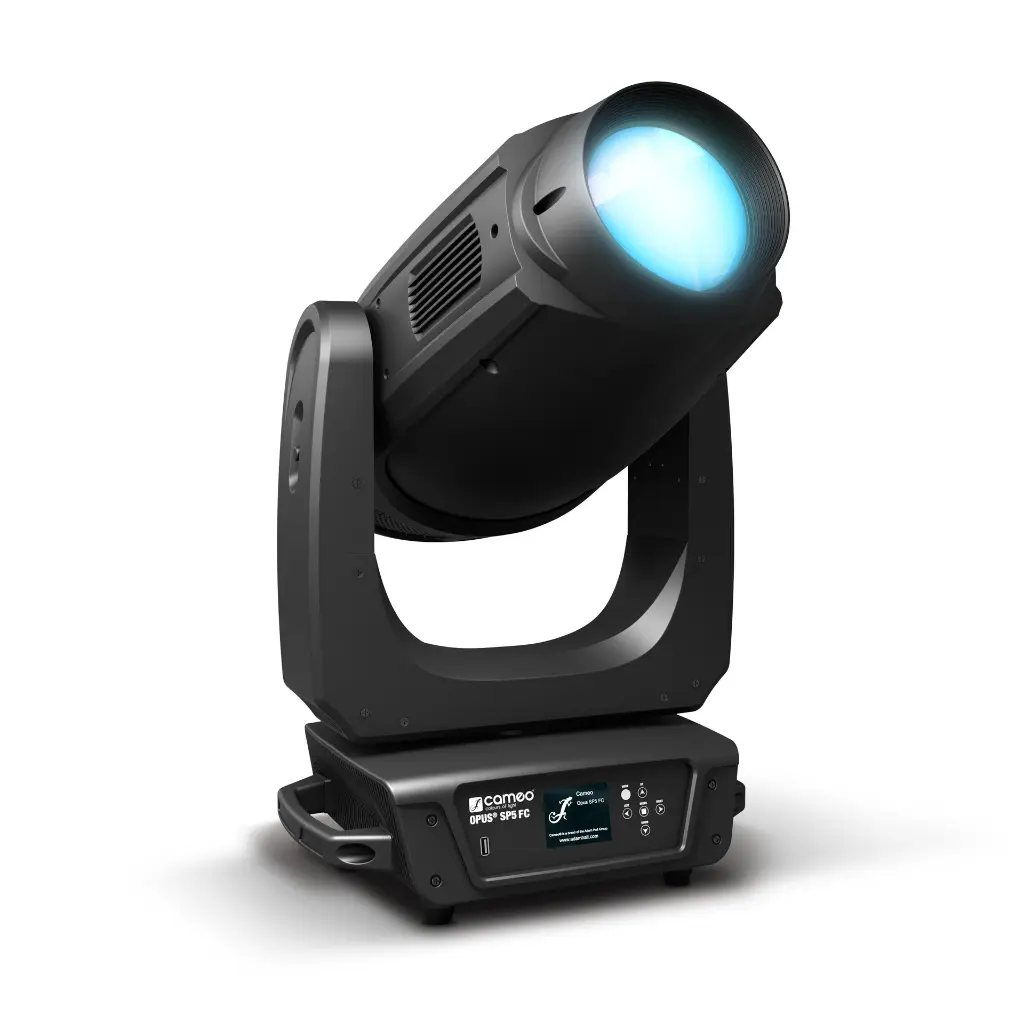

Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.
The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.
FEATURES
- Profile Spot Moving Head with 300 W Full Colour RGBAL-LED
- Display the complete colour spectrum with CRI >90 and TLCI 93
- High-quality optic with especially long zoom range of 6° to 44°
- Even projection without colour shadows
- Fourfold diaphragm slider system with +/- 45° rotation
- Angle and position of each diaphragm slider adjustable up to complete closure
- Rotatable animation wheel
- Rotating gobo wheel with 6 indexable and rotatable replaceable glass gobos plus open
- Static gobo wheel with 7 replaceable glass gobos plus open
- Rotatable and indexable circular threefold prism and linear sixfold prism
- Variable frost filter for washlight effects and continuously variable iris diaphragm
- Smooth dimming with 16-bit resolution and 4 selectable curves
- Flicker-free thanks to selectable PWM frequencies up to 25 kHz
- Battery-powered touchscreen display with 6 touch keys for mains-free configuration
- Flexible control options via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
- 50 colour presets matched for use with LEE filters
SPECIFICATIONS
- Colour spectrum: RGBAL
- Number of LEDs: 1
- Average LED lifetime: > 20000 hours
- LED type: 300 W
- Refresh rate: adjustable to 25000 Hz
- Dispersion: 6 - 44 °

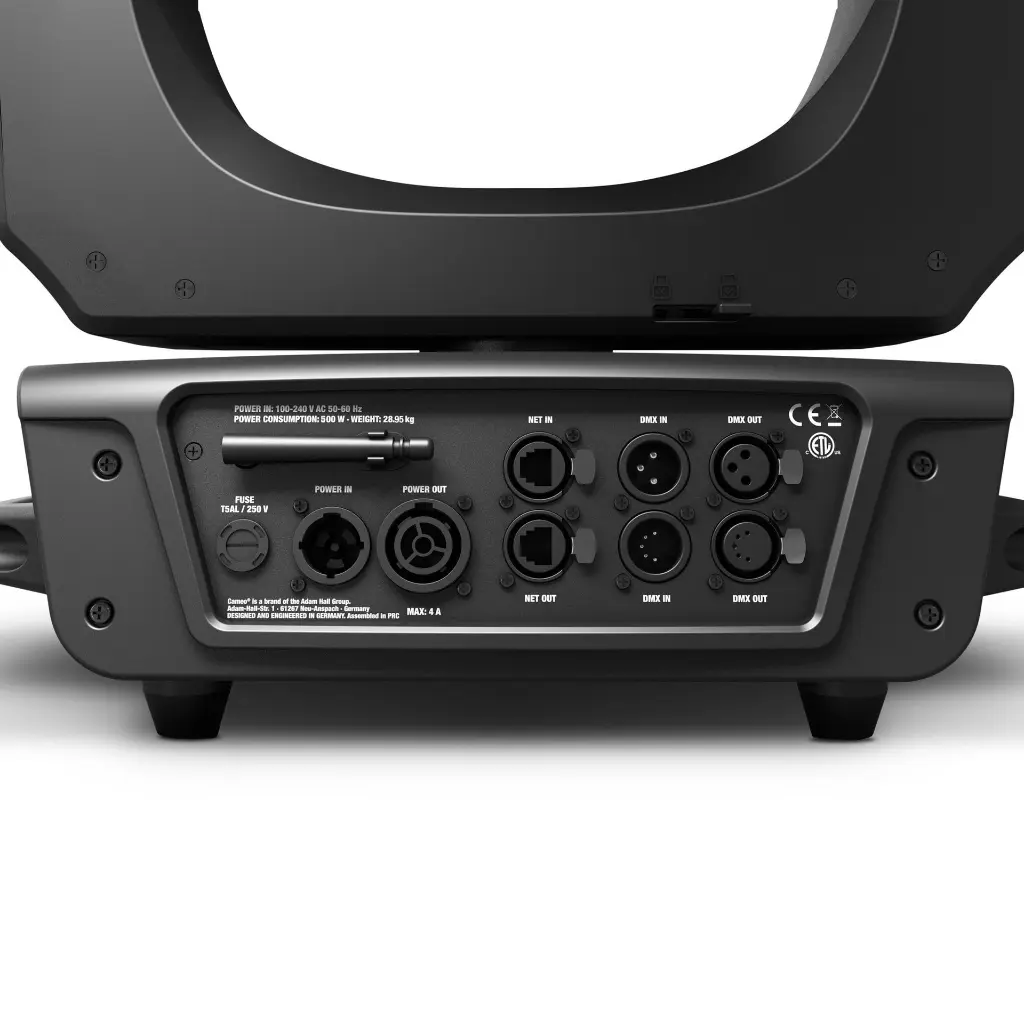

- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- DMX mode: 33-channel
- PAN movement: 540
- TILT movement: 270
- High Speed Strobe: > 20 Hz
- Standalone modes: Auto Mode, Settings, Static
- Controls: Enter, Mode, Value Down, Value Up
- Indicators: Graphic Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT
- Power consumption: 500 W
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Heat-pipe cooling system with temperature controlled fans
- Illuminance: 14000 lx @ 5 m
- Luminous flux: 9000 lm
- Maximum Ambient Temperature: -15 - 45 °C
- Dimensions (W x H x D): 380 mm x 710 mm x 250 mm
- Weight: 28.95 kg
