Cameo OPUS S5 Spot
CLOS5
Stock:
Special Order
Note:
Stock is updated periodically. While we strive to reflect accurate availability, real-time stock status is not guaranteed. Please contact us for precise delivery timeframes.
Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion.
Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.
FEATURES
- Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5 m
- Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
- Linear CTO correction from 6,500 - 2,600 K
- Highly efficient optics with extra wide 6° - 46° zoom range
- Even and flat projection field without hot spots at any zoom angle
- Rotating animation wheel
- Rotating gobo wheel with 7 interchangeable indexable glass gobos + open
- Static gobo wheel with 8 interchangeable glass gobos + open
- Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
- Variable frost for wash-like effects plus stepless iris
- Ultra smooth 16-bit dimming with 4 selectable curves
- Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz

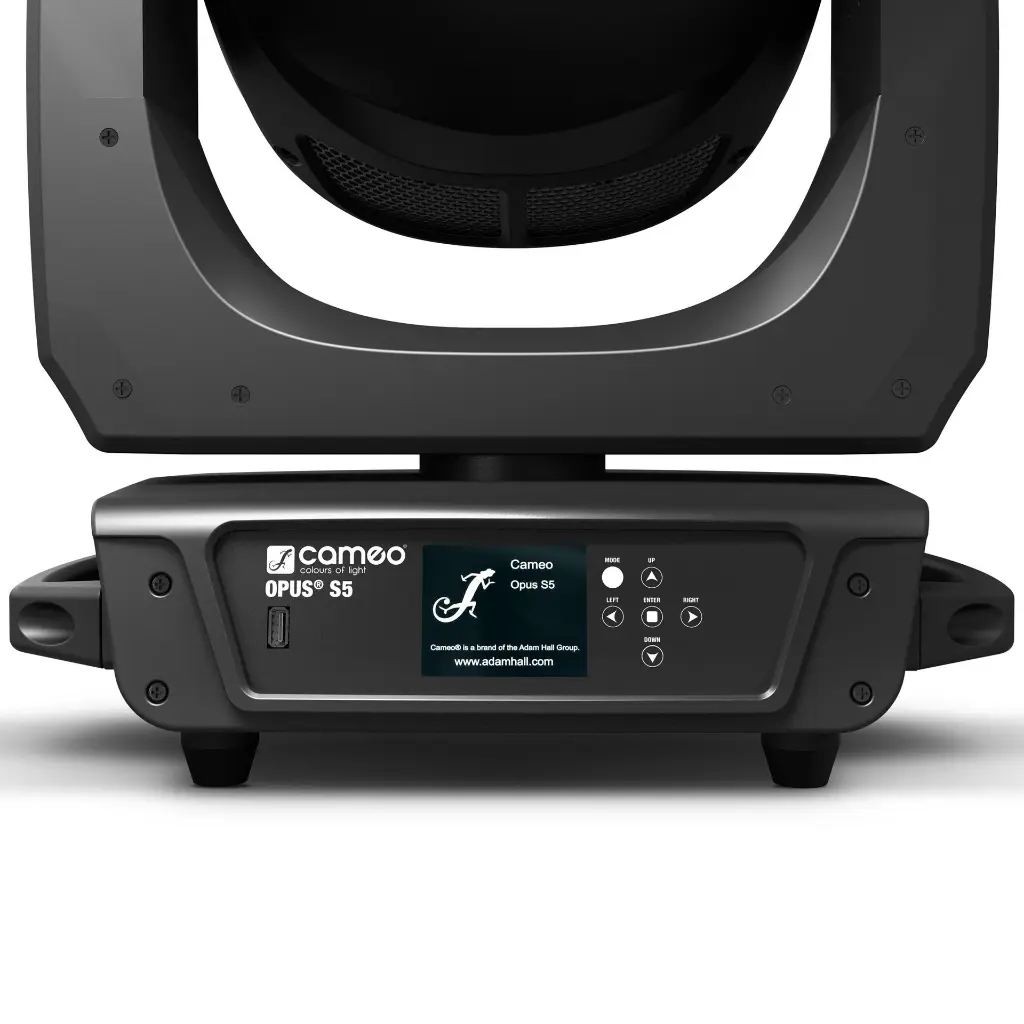

- Battery powered touchscreen display plus 6 touch buttons for offline configuration
- Flexible control via built-in W-DMX™ Transceiver, DMX, RDM, Art-Net or sACN
SPECIFICATIONS
- Colour spectrum: Cold white
- Number of LEDs: 1
- Color temperature: 6700 K
- Average LED lifetime: > 20000 hours
- LED type: 380 W
- Dispersion: 6 - 48 °
- Effects: Focus, Heavy Frost, Iris, Prism, Zoom
- Colour mixing function: CMY + CTO
- LED PWM Frequency: 650 Hz, 1530 Hz, 3600 Hz, 12000 Hz, 25000 Hz (adjustable)
- Color wheel: 1
- Number of gobos: 15 + open (8 fixed + 7 rotating)
- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- DMX mode: 27-channel, 33-channel
- PAN movement: 540°
- TILT movement: 270°
- High Speed Strobe: > 20 Hz
- Standalone modes: Master/Slave Mode, Static Mode
- Control: ArtNet, DMX, Master/Slave Signal, RDM, sACN, Wireless DMX
- Controls: Down, Enter, Left, Mode, Right, Up
- Indicators: Graphic Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz, Neutrik True 1 IN / OUT
- Power consumption: 650 W
- Power supply connector: Neutrik powerCON TRUE1 TOP
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: Silent, temperature controlled fan
- Luminous flux: 17500 lm
- Maximum Ambient Temperature: -10 - 45 °C
- Dimensions (W x H x D): 400 mm x 630 mm x 250 mm
- Weight: 24 kg
WHAT'S INCLUDED
- 2 x omega mounting
- Power Cord with Neutrik powerCON TRUE1 Connector
- User's manual
