FEATURES
- 1100W bi-amped design with Class-D & Class A/B technology
- Lightweight, strong ABS chassis
- Speaker Delay Time
- Custom selected woofers and HF drivers
- Punchy bass with clear highs, and warm mids.
- Onboard DSP processor with mode selection
- 6-band graphic EQ
- Speaker time delay
- High-Pass/Low-Pass Filters
- Main volume control
- Designed and engineered in Australia
- Perfect for DJs, bands, and venues
- 2-way high powered active PA speaker
SPECIFICATIONS
- Product number: REVO15DSP
- Product type: PA loudspeaker
- Type: Powered 2-Way
- Low/mid driver dimensions: 15″ (381mm)
- HF driver dimensions: 1.75” (44.5mm)
- Amplifier: Class A/B & Class D
- Dispersion (H x V): 90° x 60°
- RMS: 350W
- Peak power: 1100W
- Frequency response: 50 Hz – 20 kHz
- Max. SPL (peak): 122dB
- DSP Control: 8 Selectable Programs (4 User editable)
- Max Input Level: 20 dBu
- Signal to Noise: 90 dB (A-Weighted)
- Total Harmonic Distortion (THD): <0.5% (1kHz -9dB)

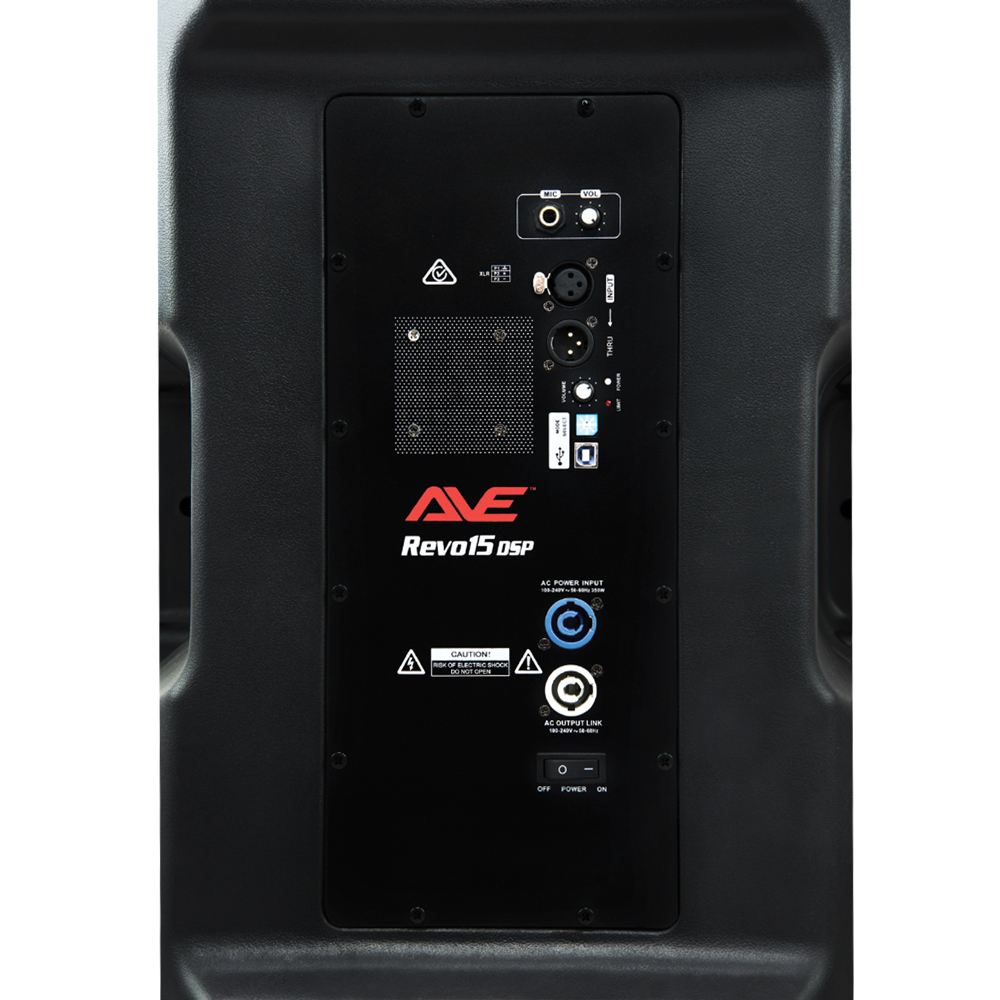

- Controls: 1 x mic gain, 1x main level, DSP selector mode, power
- Indicators: Power, limit
- Inputs: 1x XLR (line), 1x ¼” TS Jack (mic)
- Outputs: 1x XLR
- Other Connections: 1x USB-B port (DSP Connection)
- Operating voltage: 110 – 240 V / 50 – 60 Hz, Switching Power Supply
- Power Connection: Powercon
- Cabinet material: ABS Plastic
- Dimensions: 710 x 450 x 370 mm
- Weight: 19.6kg
