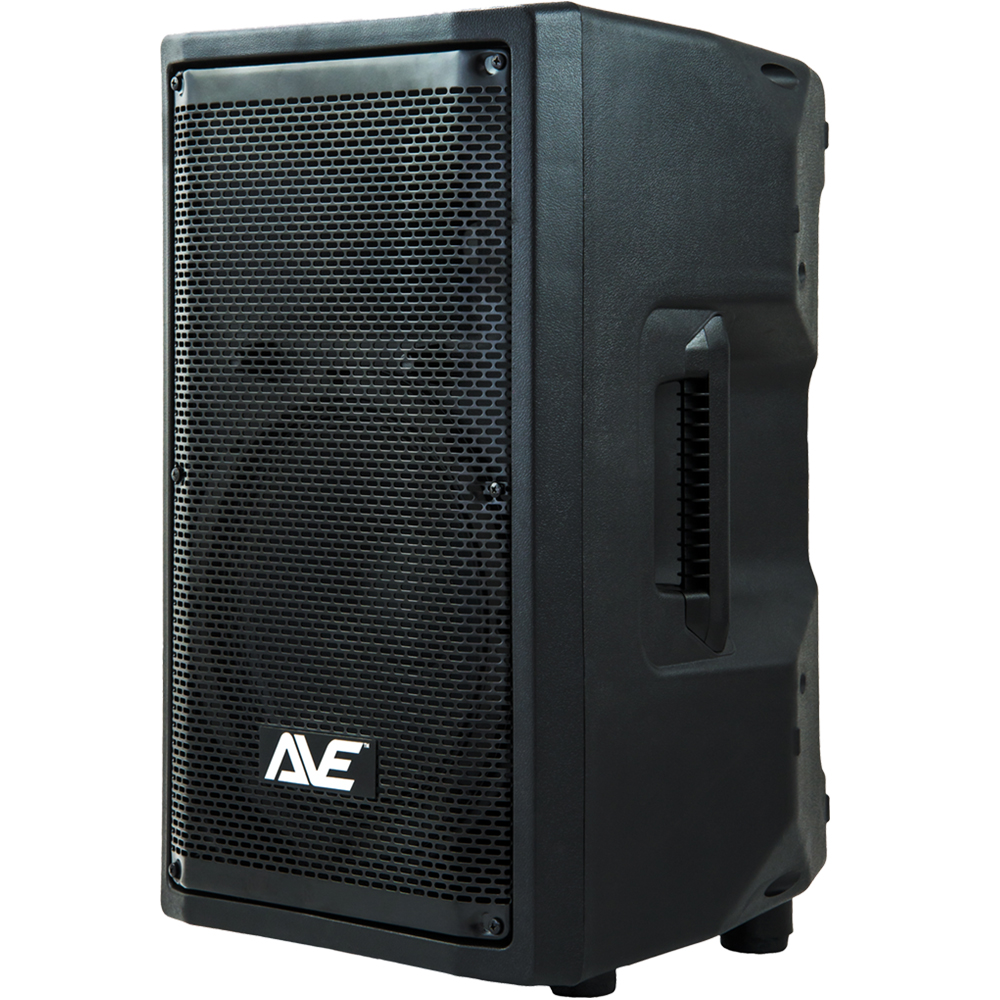

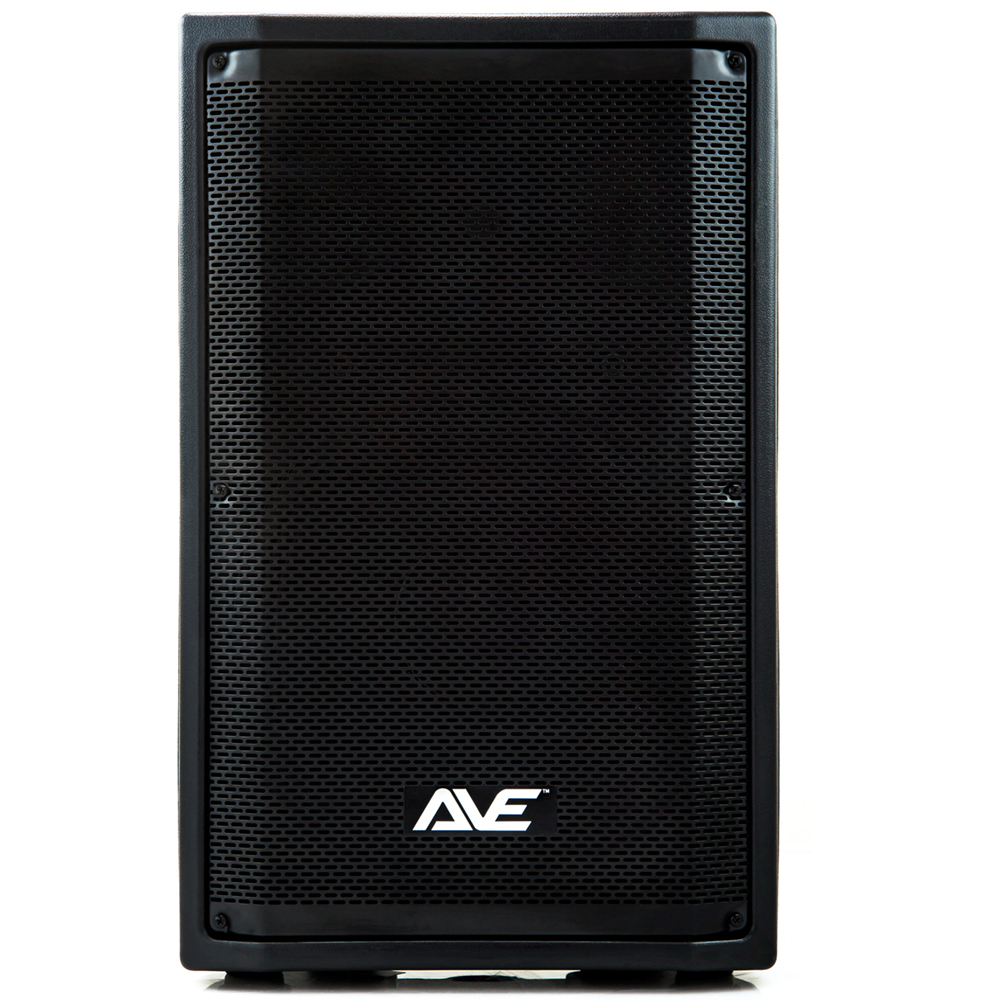

REVO 12 DSP is a 12″ powered speaker that is part of a new and innovative portable loudspeaker series designed in Australia by AVE. Each REVO12-DSP is tuned and rigorously tested for 2 days by AVE engineers, ensuring reliability and performance out of each and every speaker. The powerful 1100W amplifier uses both Class-D and Class-A/B technology, for maximum performance and efficiency. And have been fitted with carefully selected high-frequency and low-frequency drivers for uncompromising performance. Providing pristine sound quality at an extremely affordable price point.
SPECIFICATIONS
- Product number: REVO12DSP
- Product type: PA loudspeaker
- Type: Powered 2-Way
- Low/mid driver dimensions: 12″ (304.8mm)
- HF driver dimensions: 1.75” (44.5mm)
- Amplifier: Class A/B & Class D
- Dispersion (H x V): 90° x 60°
- RMS: 350W
- Peak power: 1100W
- Frequency response: 50 Hz – 20 kHz
- Max. SPL (peak): 121dB
- DSP Control: 8 Selectable Programs (4 User editable)
- Max Input Level: 20 dBu
- Signal to Noise: 90 dB (A-Weighted)
- Total Harmonic Distortion (THD): <0.5% (1kHz -9dB)

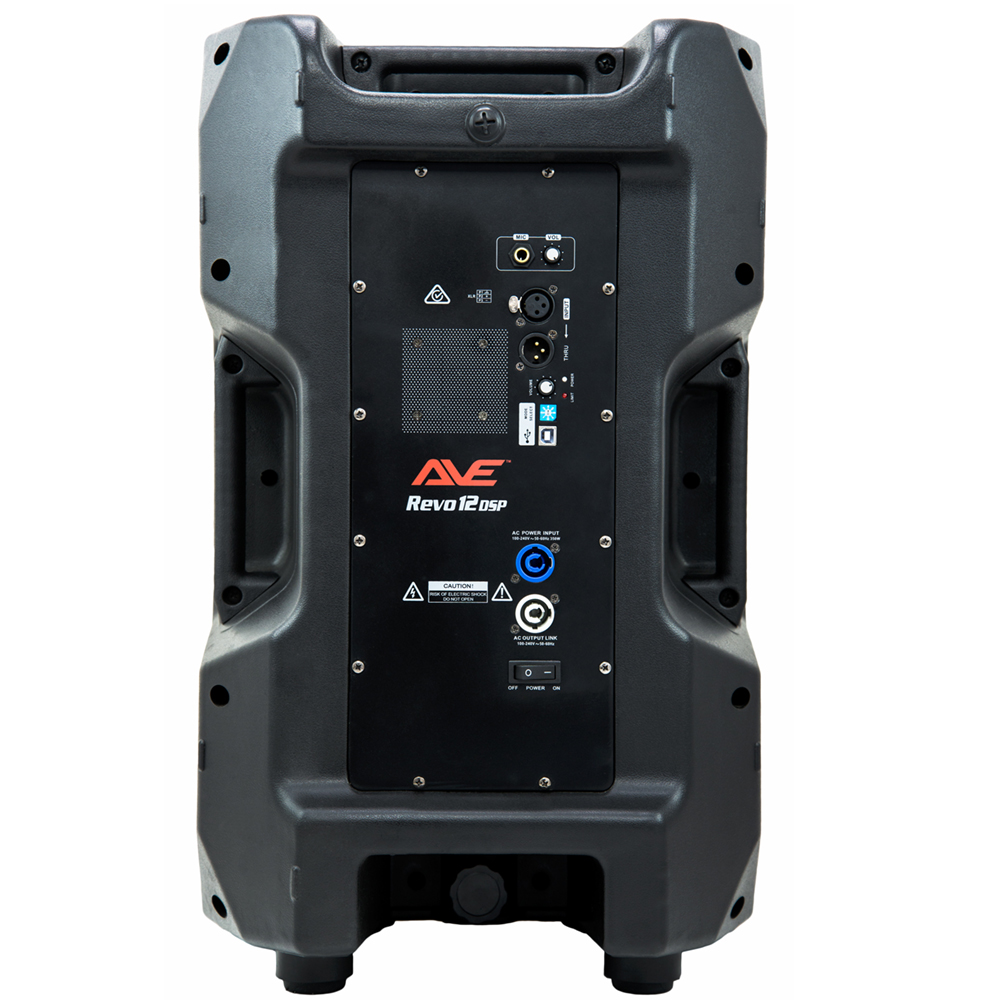

- Controls: 1 x mic gain, 1x main level, DSP selector mode, power
- Indicators: Power, limit
- Inputs: 1x XLR (line), 1x ¼” TS Jack (mic)
- Outputs: 1x XLR
- Other Connections: 1x USB-B port (DSP Connection)
- Operating voltage: 110 – 240 V / 50 – 60 Hz, Switching Power Supply
- Power Connection: Powercon
- Cabinet material: ABS Plastic
- Dimensions: 620 x 380 x 350 mm
- Weight: 15.3kg
