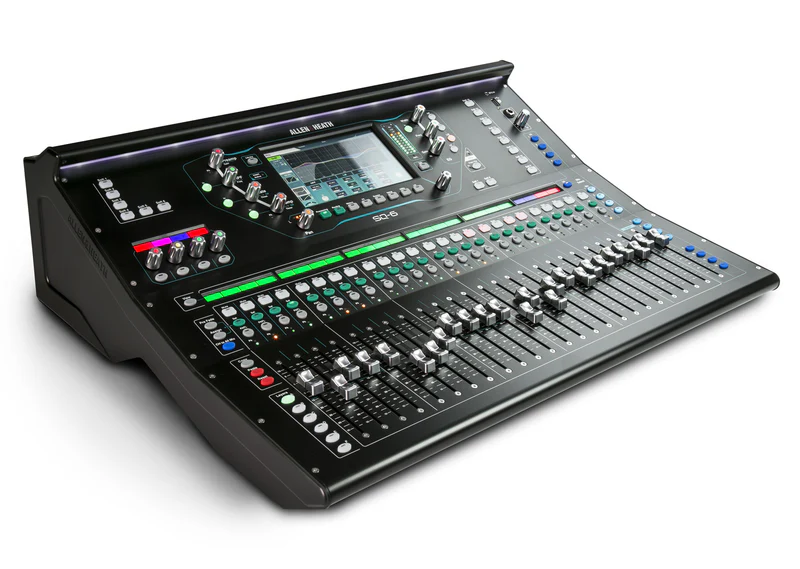

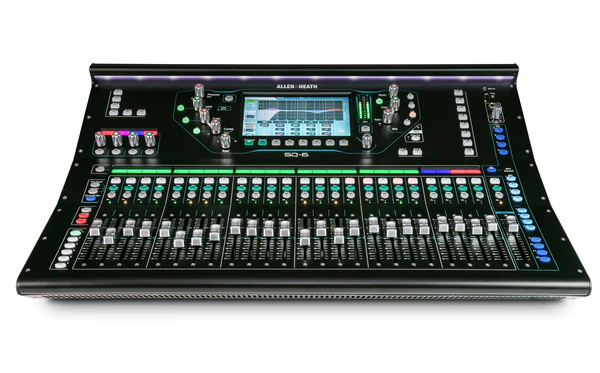

SQ6 is a next generation digital mixer, powered by Allen & Heath’s revolutionary XCVI 96kHz FPGA engine. SQ6 offers class leading high resolution audio fidelity and an ultra low latency of <0.7ms. The console features 24 exceptional mic preamps, plus 8 stereo FX engines with dedicated return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more.

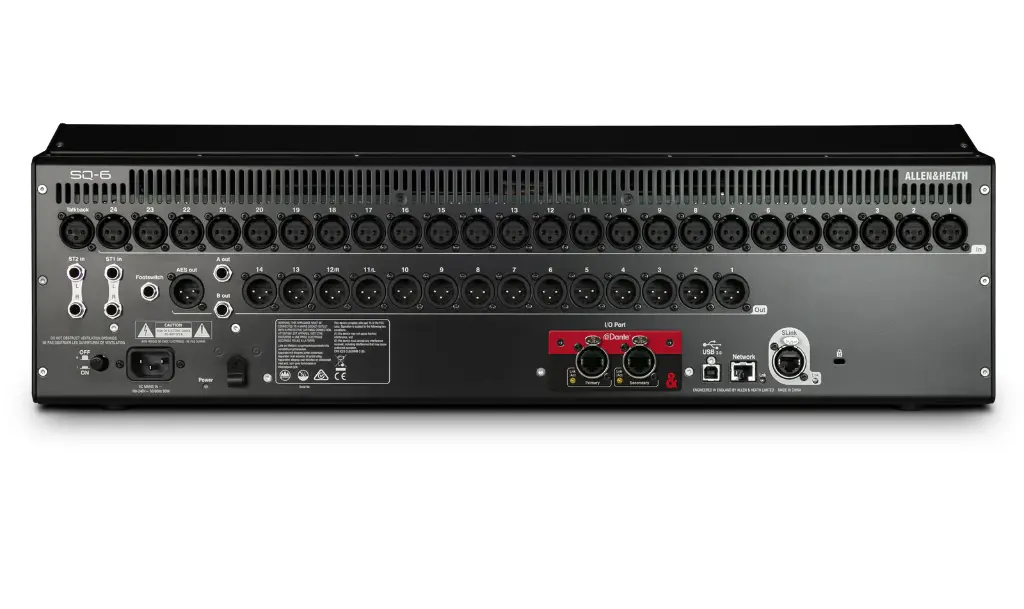

SQ-6 has all the onboard I/O you need for standalone operation. Thanks to its SLink intelligent port, SQ can also be expanded up to a total of 48 mic inputs via a family of 96kHz and 48kHz rack and stage box expanders (e.g. AB168, AR2412, AR84 GX4816 and DX168), making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. You can also link your SQ directly to another SQ or even a dLive system
We know that the live environment can be tough on gear that’s why we devised our most punishing regime of testing and retesting yet for SQ. From its 3 tier, all metal chassis to its extruded aluminium light bar, SQ has tremendous strength and rigidity underlying its good looks.
FEATURES
- 96kHz FPGA processing
- 48 Input Channels
- DEEP Processing ready
- 25 Faders / 6 Layers
- 12 Stereo mixes + LR
- 3 Stereo Matrix
- 8 Stereo FX Engines + dedicated returns
- 7” capacitive touchscreen
- SLink port for remote audio / expansion
- 64ch I/O Port for audio networking
- 32x32 USB audio interface
- SQ-Drive direct recording to USB
- AES output
- Chromatic channel metering
- Integrated LED illumination
- Dedicated physical controls
- 16 Assignable SoftKeys
- 4 Assignable Soft Rotaries
- Channel LCD displays
Unpacked weight 13.3kg 638x 514.9 x 198mm
